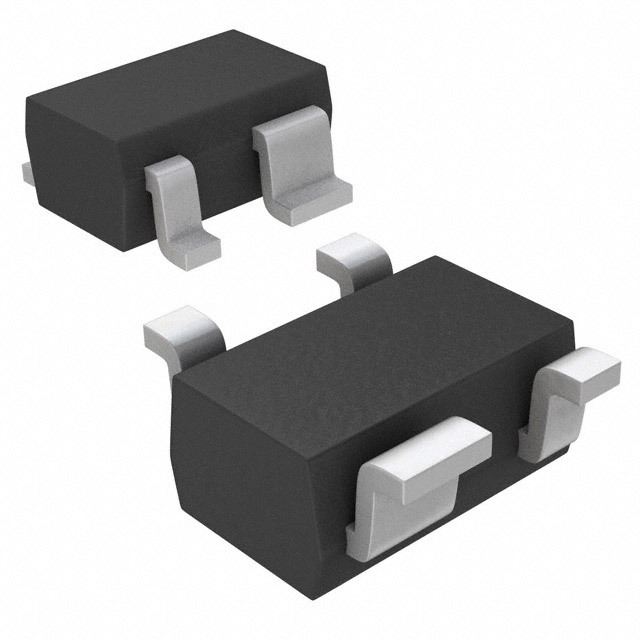

Same model may have multiple batches, images only for reference.
UET14A05L03-BK
Same model may have multiple batches, images only for reference.

UET14A05L03-BK

Part No UET14A05L03-BK
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC SOT143
Datasheet
UET14A05L03-BK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 31 Weeks
Features 15V (Typ) Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOT-143
Manufacturer Yageo
Series UET14A05L03-BK
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package TO-253-4, TO-253AA
Case / Package SOT-143
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 13-UET14A05L03-BKCT, 13-UET14A05L03-BKDKR, 13-UET14A05L03-BKTR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901864-UET14A05L03-BK
Ultra Librarian 3D Model Ultra Librarian UET14A05L03-BK CAD Model

Description

The UET14A05L03-BK is a TVS diode from the UET14A05L03-BK series manufactured by YAGEO. It has a 15V (typ) clamp and a 3A (8/20μs) Ipp.

  • Clamp Voltage: 15V (typ)
  • Ipp: 3A (8/20μs)
  • Package/Case: SOT-143
  • Mounting Style: Surface Mount
  • Operating Temperature Range: -55°C to 150°C
  • Application: Circuit Protection
