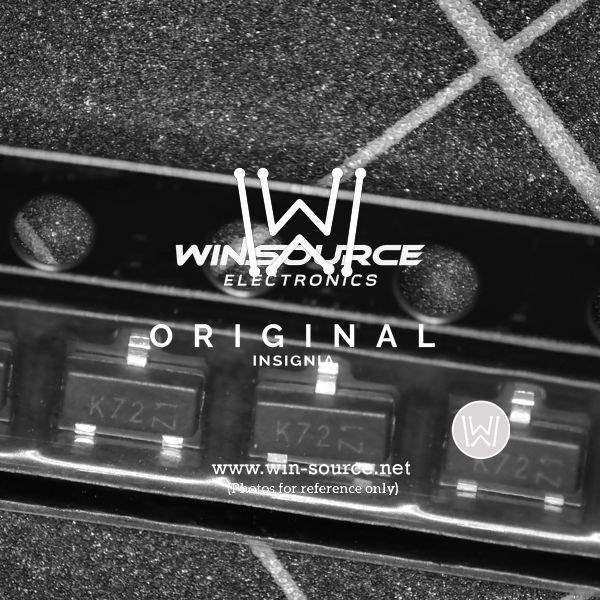

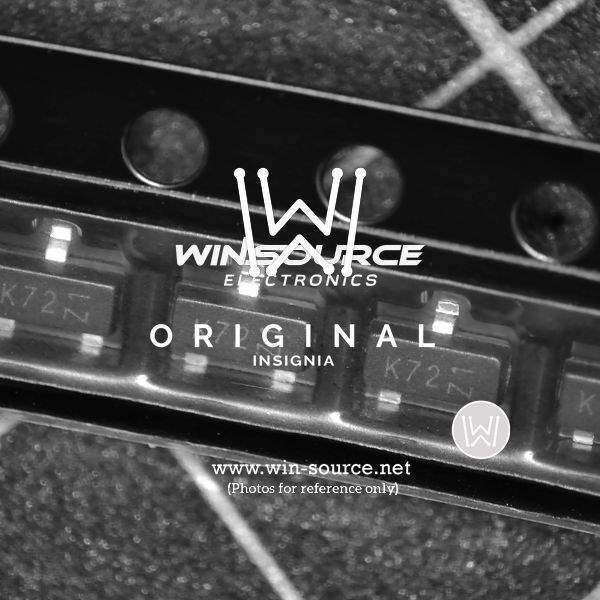

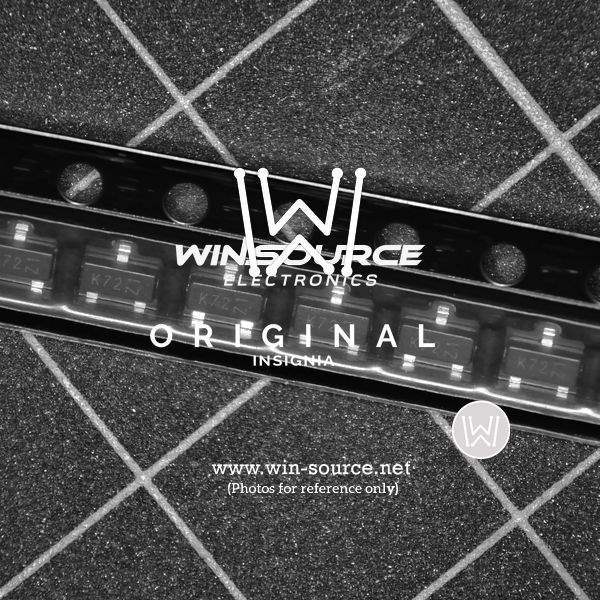

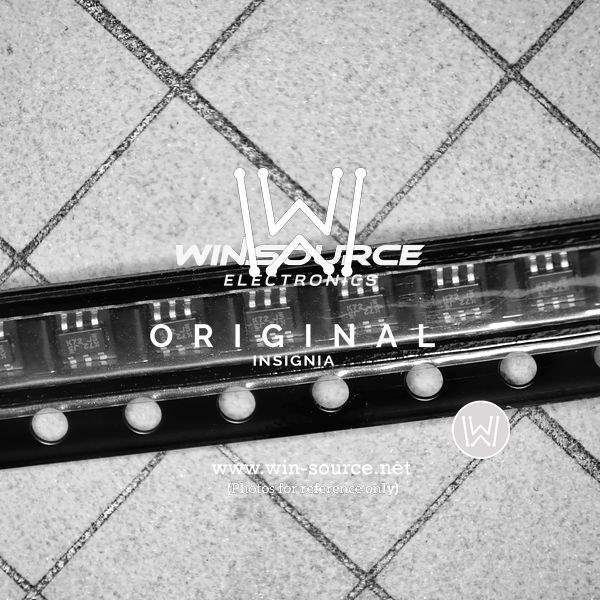

2N7002KDW Real Image1 2N7002KDW Real Image2 2N7002KDW Real Image3 2N7002KDW Real Image4
Same model may have multiple batches, images only for reference.
2N7002KDW Real Image1 2N7002KDW Real Image2 2N7002KDW Real Image3 2N7002KDW Real Image4
2N7002KDW Real Image1 2N7002KDW Real Image2 2N7002KDW Real Image3 2N7002KDW Real Image4
Same model may have multiple batches, images only for reference.

2N7002KDW

Part No 2N7002KDW
Manufacturer Yangzhou yangjie electronic co., ltd
Catalog FETs - Arrays
Description N-CH MOSFET 60V 0.34A SOT-363
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr Yangzhou yangjie electronic co., ltd
Package Tape & Reel
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual)
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 340mA (Ta)
Rds On (Max) @ Id, Vgs 2.5Ohm @ 300mA, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 2.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 30pF @ 30V
Power - Max 350mW (Ta)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Base Product Number 2N7002
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Win Source Part Number 541545-2N7002KDW
Ultra Librarian 3D Model Ultra Librarian 2N7002KDW CAD Model

Description

The 541545-2N7002KDW is a dual N-channel MOSFET array designed for use in discrete semiconductor products.

  • Drain-to-Source Voltage (Vdss): 60V
  • Continuous Drain Current (Id): 340mA @ 25°C
  • On-Resistance (Rds On): 2.5Ohm @ 300mA and 10V
  • Gate-Source Threshold Voltage (Vgs(th)): 2.5V @ 250μA
  • Power Rating: 350mW
  • Package: 6-TSSOP, SC-88, SOT-363
  • Mounting Type: Surface Mount
  • Gate Charge (Qg): 2.4nC @ 10V
  • Input Capacitance (Ciss): 30pF @ 30V
  • Operating Temperature Range: -55°C to 150°C
  • Manufacturer: Yangzhou yangjie electronic co., ltd
  • Product Status: Active
