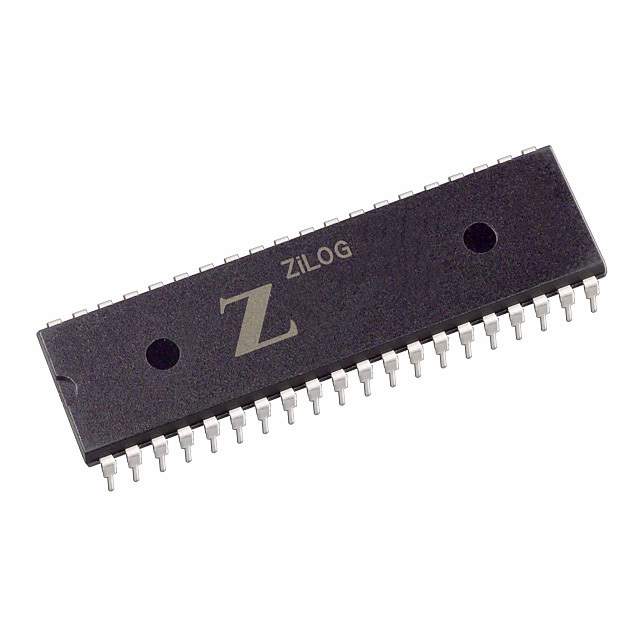

Z86C1505PSC Real Image
Same model may have multiple batches, images only for reference.

Z86C1505PSC

Part No Z86C1505PSC
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB ROM 40DIP
Datasheet
Z86C1505PSC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Zilog
Packaging Tube/Rail
Status Obsolete(EOL)
Core Processor Z8
Part Core Size 8-Bit
Speed(Frequency) 5MHz
Number of I/O 32
Program Memory Size 4KB (4K x 8)
Program Memory Type ROM
Data RAM Size 236 x 8
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating 0°C to 70°C (TA)
Dimension 40-DIP (0.620", 15.75mm)
Win Source Part Number 214677-Z86C1505PSC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian Z86C1505PSC CAD Model

Description

The Z86C1505PSC is an 8-bit microprocessor from Zilog, with a core processor of Z8.

  • I/O lines: 32
  • Program memory: 4KB of ROM
  • Data RAM size: 236 x 8
  • Frequency: 5MHz
  • Supply voltage range: 4.5 V to 5.5 V
  • Operating temperature range: 0°C to 70°C
  • Status: obsolete (EOL)
  • Package: 40-DIP package
