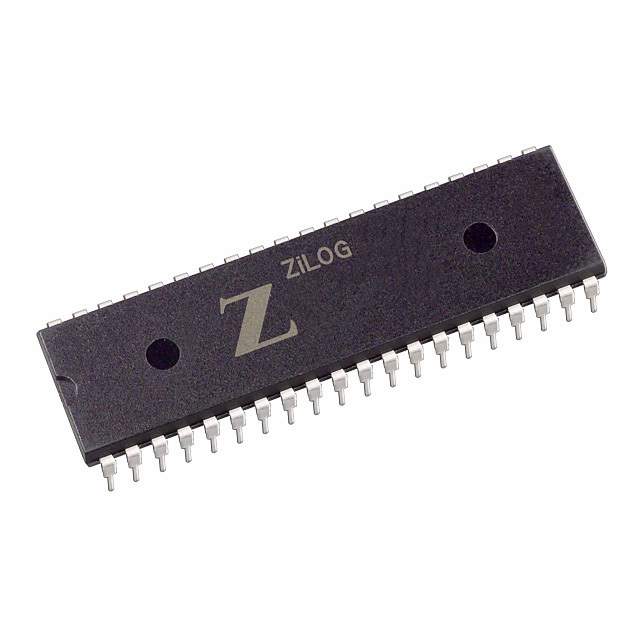

Z86E6116PSC Real Image
Same model may have multiple batches, images only for reference.

Z86E6116PSC

Part No Z86E6116PSC
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description Z86E61/Z86E63 CMOS Z8 16K/32K EPROM Microcontroller
Datasheet
Z86E6116PSC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Zilog
Series Z8
Packaging Tube
Part Status Obsolete(EOL)
Core Processor Z8
Core Size 8-Bit
Speed 16MHz
Connectivity UART/USART
Number of I/O 32
Program Memory Size 16KB (16K x 8)
Program Memory Type One Time Programmable(OTP)
RAM Size 236 x 8
Supply Voltage 4.5 V ~ 5.5 V
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C (TA)
Package 40-DIP (0.620", 15.75mm)
RoHS State Request Verification
Win Source Part Number 1282805-Z86E6116PSC
Manufacturer Homepage www.zilog.com
Popularity Medium
Supply and Demand Status Limited
Family Name Z86E61
Introduction Date April 30, 1999
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian Z86E6116PSC CAD Model

Description

The Z86E6116PSC is a Z8 series integrated circuit manufactured by Zilog.

  • Speed: 16MHz
  • Core Size: 8-bit
  • I/O: 32
  • Program Memory Size: 16KB (16K x 8)
  • RAM Size: 236 x 8
  • Oscillator Type: Internal
  • Supply Voltage: 4.5 V ~ 5.5 V
  • Package: 40-DIP (0.620", 15.75mm) tube
  • Supply and Demand Status: Limited
  • Status: Obsolete (EOL)
  • Manufacturer Homepage: www.zilog.com
