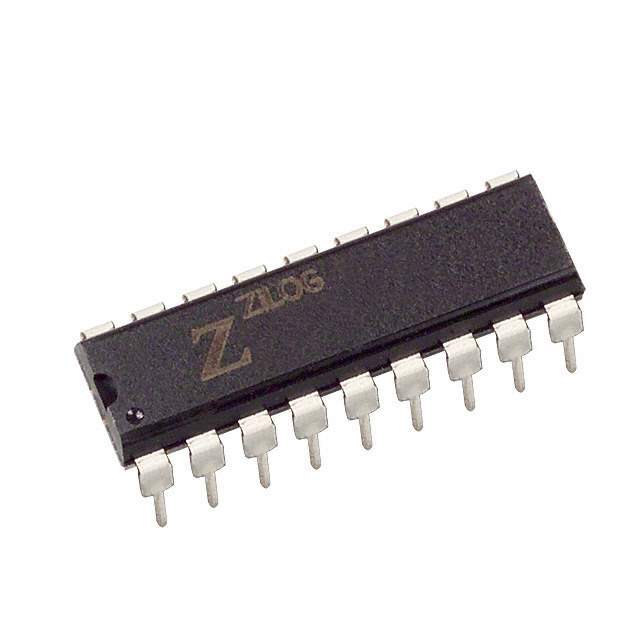

Z8E00010PSC Real Image
Same model may have multiple batches, images only for reference.

Z8E00010PSC

Part No Z8E00010PSC
Manufacturer Zilog
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 512B OTP 18DIP
Datasheet
Z8E00010PSC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Zilog
Packaging Tube/Rail
Status Obsolete(EOL)
Core Processor Z8
Part Core Size 8-Bit
Speed(Frequency) 10MHz
Number of I/O 13
Program Memory Size 512B (512 x 8)
Program Memory Type OTP
Data RAM Size 32 x 8
Supply Voltage - Operating 3.5 V to 5.5 V
Temperature Range - Operating 0°C to 70°C (TA)
Dimension 18-DIP (0.300", 7.62mm)
Win Source Part Number 214681-Z8E00010PSC
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian Z8E00010PSC CAD Model

Description

The Z8E00010PSC is an 8-bit microcontroller from Zilog.

  • Core Processor: It features a core processor of Z8
  • Program Memory: with a program memory size of 512B (512 x 8) and program memory type of OTP.
  • I/O: The number of I/O is 13
  • Data RAM Size: and the data RAM size is 32 x 8.
  • Core Size: The part core size is 8-bit
  • Speed/Frequency: and the speed/frequency is 10MHz.
  • Supply Voltage: The supply voltage operating range is 3.5V to 5.5V
  • Temperature Range: and the temperature range for operating is 0°C to 70°C.
  • Package: It is available in a 18-DIP (0.300", 7.62mm) package and is packaged in tube/rail.
  • Application: This microcontroller is commonly used in industrial control systems and is now obsolete.
