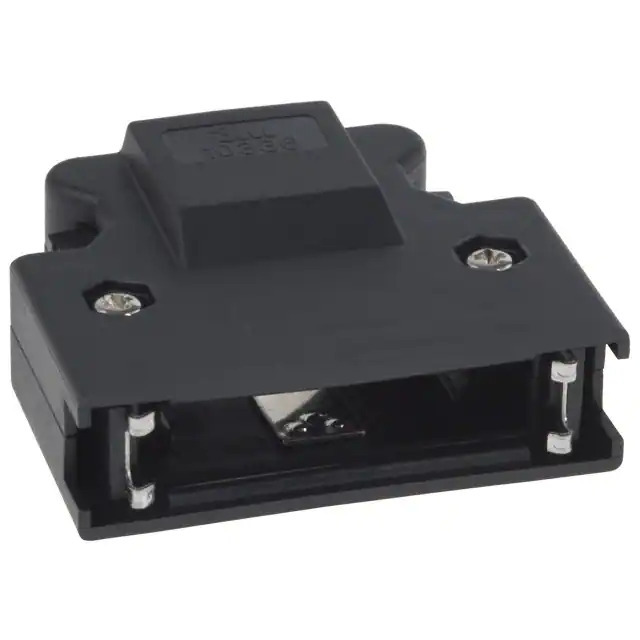

10336-52F0-008 3M
Same model may have multiple batches, images only for reference.

10336-52F0-008

Part No 10336-52F0-008
Manufacturer 3M
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 36POS 180DEG BLK / 36 Position Two Piece Backshell Connector Black 180° Unshielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub, D-Shaped Connector Backshells, Hoods
Mfr 3M
Series 103
Package Tray
Product Status Active
Accessory Type Two Piece Backshell
Number of Positions 36
Cable Type Round
Cable Exit 180°
Shielding Unshielded
Material Polybutylene Terephthalate, Glass Filled
Plating -
Hardware Assembly Hardware, Strain Relief
Features Latch Lock
Color Black
Base Product Number 10336
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1355015-10336-52F0-008
Ultra Librarian 3D Model Ultra Librarian 10336-52F0-008 CAD Model

Description

The 3M 103 series D-Sub connector backshell is a two-piece backshell designed for use with D-Sub connectors.

  • Lock Mechanism: Latch Lock
  • Material: Polybutylene Terephthalate, Glass-Filled
  • Cable Exit: 180-degree angle
  • Shielding: Unshielded
  • Color: Black
  • Positions: 36
  • Cable Type: Round Cables
  • Includes: Assembly Hardware and Strain Relief
  • Status: Active
