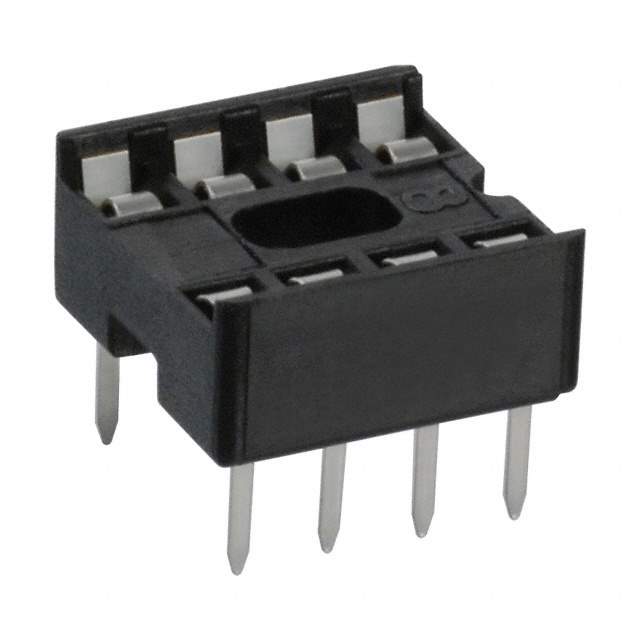

4808-3000-CP Real Image
Same model may have multiple batches, images only for reference.

4808-3000-CP

Part No 4808-3000-CP
Manufacturer 3M
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 8POS TIN  /  8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr 3M
Series 4800
Package Tube
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 8 (2 x 4)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Material - Mating Phosphor Bronze
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 35.0µin (0.90µm)
Contact Material - Post Phosphor Bronze
Housing Material Polyester, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Base Product Number 4808
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 00051111752319,51111752319,80-0009-1306-3,7000005670,5111175231,3M5461,80000913063,48083000CP
Standard Package 20,000
Win Source Part Number 1212727-4808-3000-CP
Ultra Librarian 3D Model Ultra Librarian 4808-3000-CP CAD Model

Description

This is a 4800 series open frame socket for ICs and transistors with a 0.3 inches (7.62mm) row spacing.

  • Row Spacing: 0.3 inches (7.62mm)
  • Number of Positions/Pins: 8
  • Grid: 2x4
  • Termination: Crimp
  • Housing Material: Polyester, Glass-Filled
  • Contact Finish: Tin
  • Contact Material: Phosphor Bronze
  • Insulation: Non-Insulated
  • Standard Package: 20,000
  • Mounting: Through-Hole
  • Operating Temperature: -25 to 85 degrees Celsius
  • Current Rating: 1A
  • Package: Tube
  • Description: The connector is a reliable and durable solution for your IC and transistor needs.
