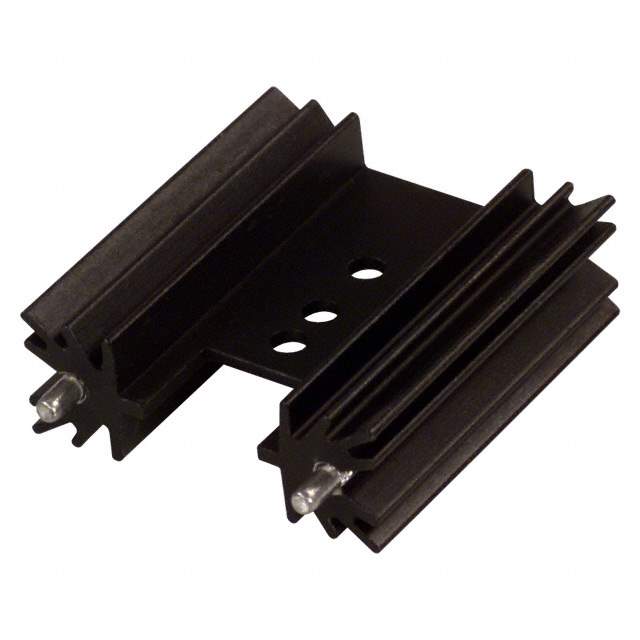

531102B02500G Real Image
Same model may have multiple batches, images only for reference.

531102B02500G

Part No 531102B02500G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 W/PINS 1.5"TALL  /  Heat Sink TO-220 Aluminum 7.0W @ 70°C Board Level, Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Aavid, Thermal Division of Boyd Corporation
Package Bulk
Type Board Level, Vertical
Package Cooled TO-220
Attachment Method Bolt On and PC Pin
Shape Rectangular, Fins
Length 1.500" (38.10mm)
Width 1.375" (34.93mm)
Fin Height 0.500" (12.70mm)
Power Dissipation @ Temperature Rise 7.0W @ 70°C
Thermal Resistance @ Forced Air Flow 3.00°C/W @ 500 LFM
Thermal Resistance @ Natural 10.40°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number 531102
MSL Level Not Applicable
ECCN EAR99
HTSUS 8473.30.5100
Other Names 041632,HS352
Standard Package 500
Win Source Part Number 1196614-531102B02500G
Ultra Librarian 3D Model Ultra Librarian 531102B02500G CAD Model

Description

The 1196614-531102B02500G from Aavid Thermalloy is a heat sink that is designed for TO-220 package cooling.

  • Shape: Rectangular with fins
  • Material: Aluminum
  • Power Dissipation: 7.0W @ 70°C
  • Thermal Resistance: 3.00°C/W @ 500 LFM
  • Application: Board level, vertical applications
  • Popularity: High
