Same model may have multiple batches, images only for reference.

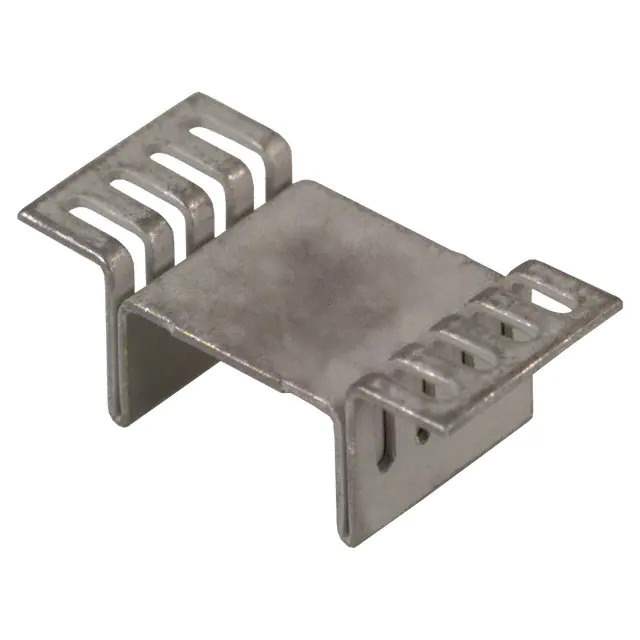

573300D00010G Real Image
Same model may have multiple batches, images only for reference.

573300D00010G

Part No 573300D00010G
Manufacturer Aavid Thermalloy
Catalog Thermal - Heat Sinks
Description HEATSINK D2PAK .4" HIGH SMD
Datasheet
573300D00010G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Aavid Thermalloy
Package Tape & Reel
Product Status Active
Type Top Mount
Package Cooled TO-263 (D²Pak)
Attachment Method SMD Pad
Shape Rectangular, Fins
Length 0.500" (12.70mm)
Width 1.030" (26.16mm)
Fin Height 0.400" (10.16mm)
Power Dissipation @ Temperature Rise 1.3W @ 30°C
Thermal Resistance @ Forced Air Flow 10.00°C/W @ 200 LFM
Thermal Resistance @ Natural 18.00°C/W
Material Aluminum
Material Finish Tin
Base Product Number 573300
Standard Package 250 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 856590-573300D00010G
Ultra Librarian 3D Model Ultra Librarian 573300D00010G CAD Model

Description

The Heat Sink by Aavid Thermalloy is an efficient solution for thermal management in electronic devices.

  • Mounting Type: Top Mount
  • Material: Aluminum
  • Shape: Rectangular with Fins
  • Attachment Method: SMD Pad
  • Length: 0.500" (12.70mm)
  • Width: 1.030" (26.16mm)
  • Package Cooled: TO-263 (D²Pak)
  • Power Dissipation @ Temperature Rise: 1.3W @ 30°C
  • Thermal Resistance @ Forced Air Flow: 10.00°C/W @ 200 LFM
  • Product Status: Active
  • Standard Package: 250 pieces
  • Finish: Tin
  • REACH: Unaffected
