ATS-20C-45-C2-R0

Part No ATS-20C-45-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 25X25X20MM L-TAB T766 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Tray
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 0.984" (25.00mm)
Width 0.984" (25.00mm)
Fin Height 0.790" (20.00mm)
Thermal Resistance @ Forced Air Flow 15.02°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-20C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Names ATS33276,ATS-20C-45-C2-R0-ND
Standard Package 50
Win Source Part Number 1136767-ATS-20C-45-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-20C-45-C2-R0 CAD Model

Description

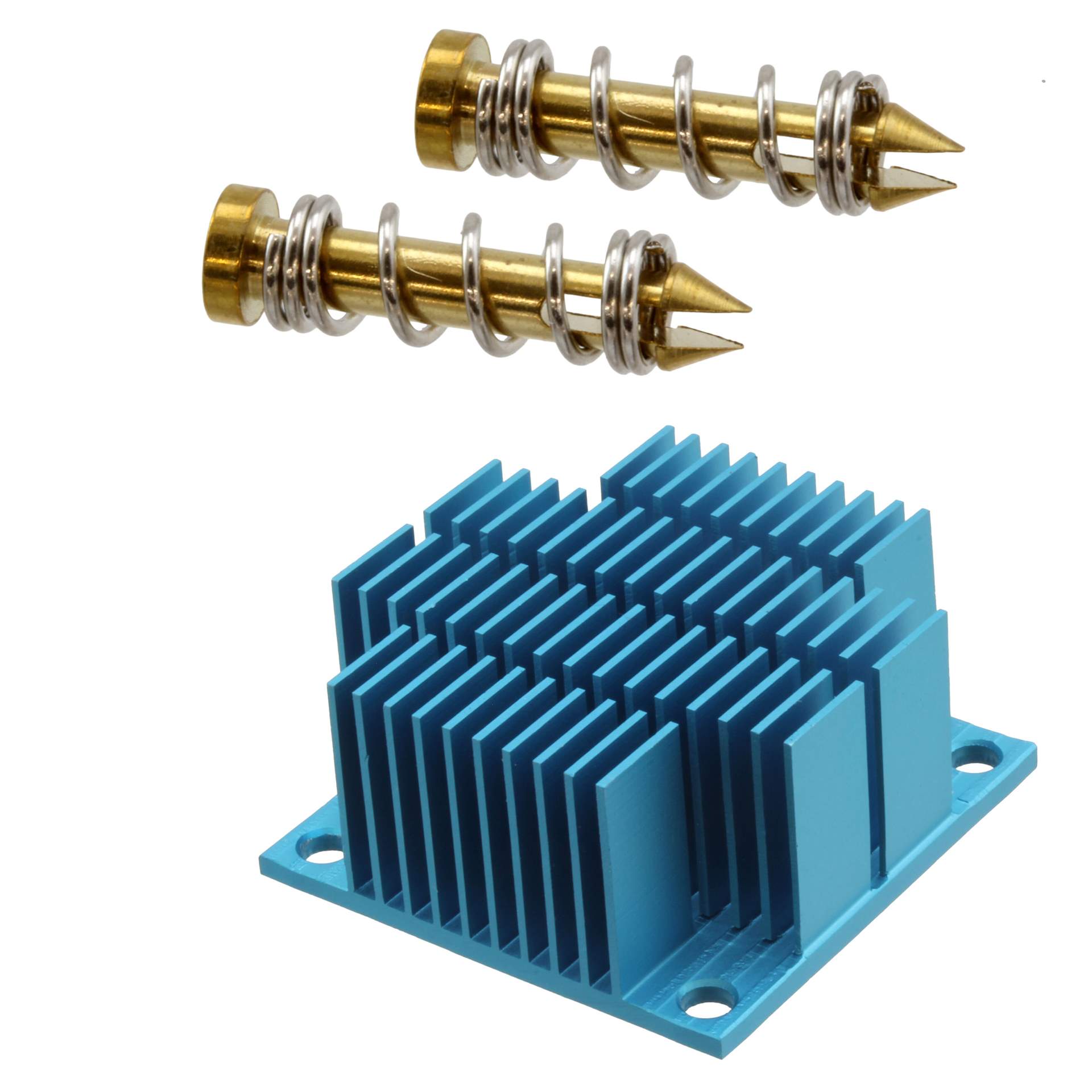

The ATS-20C-45-C2-R0 is a pushPIN™ top mount heat sink designed for use in various electronic devices.

  • Type: PushPIN™ Top Mount Heat Sink
  • Manufacturer: Advanced Thermal Solutions Inc.
