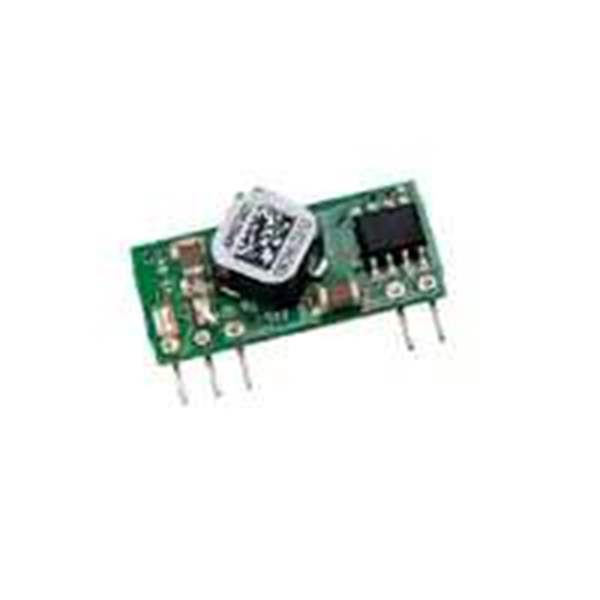

Same model may have multiple batches, images only for reference.

AXA003A0X4

Name: AXA003A0X4
Brand: ABB Embedded Power
SKU: 567342
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AXA003A0X4
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.8-5.5V 16W
Datasheet	AXA003A0X4 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	Austin MiniLynx™
Package	Bulk
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	8.3V
Voltage - Input (Max)	14V
Voltage - Output 1	0.8 ~ 5.5V
Current - Output (Max)	3A
Power (Watts)	16 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	5-SIP Module
Size / Dimension	0.90" L x 0.26" W x 0.40" H (22.9mm x 6.6mm x 10.2mm)
Control Features	Enable, Active High
Standard Package	144 pcs
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	567342-AXA003A0X4
Ultra Librarian 3D Model	Ultra Librarian AXA003A0X4 CAD Model

Alternative Products

Description

The 567342-AXA003A0X4 is a non-isolated PoL (Point of Load) module from ABB Embedded Power. 567342-AXA003A0X4 belongs to the category of Power Supplies - Board Mount - DC DC Converters and is commonly used in ITE (Commercial) applications.

Manufacturer: ABB Embedded Power
Series: Austin MiniLynx™
Package: 5-SIP module
Size: 0.90" L x 0.26" W x 0.40" H (22.9mm x 6.6mm x 10.2mm)
Power Rating: 16W
Output: Single
Maximum Current: 3A
Input Voltage: 8.3V to 14V
Output Voltage: 0.8V to 5.5V
Features: Remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO)
Efficiency: 91%
Product Status: Obsolete
