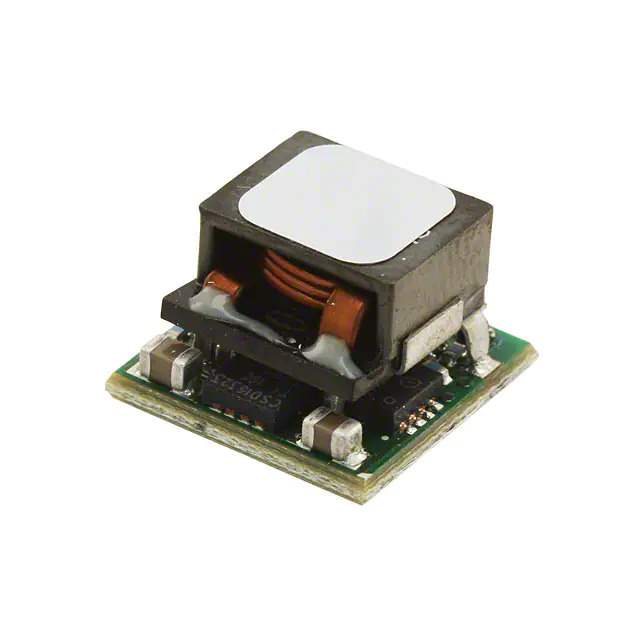

PVX012A0X3-SRZ Real Image PVX012A0X3-SRZ Real Image1 PVX012A0X3-SRZ Real Image2
Same model may have multiple batches, images only for reference.
PVX012A0X3-SRZ Real Image PVX012A0X3-SRZ Real Image1 PVX012A0X3-SRZ Real Image2
PVX012A0X3-SRZ Real Image PVX012A0X3-SRZ Real Image1 PVX012A0X3-SRZ Real Image2
Same model may have multiple batches, images only for reference.

PVX012A0X3-SRZ

Part No PVX012A0X3-SRZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-5.5V 66W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Embedded Power
Series PicoDLynx™
Package Tape & Reel
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 14.4V
Voltage - Output 1 0.6 ~ 5.5V
Current - Output (Max) 12A
Power (Watts) 66 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93.9%
Mounting Type Surface Mount
Package / Case 17-SMD Module
Size / Dimension 0.48" L x 0.48" W x 0.34" H (12.2mm x 12.2mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number PVX012
Standard Package 200 pcs
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 658243-PVX012A0X3-SRZ
Ultra Librarian 3D Model Ultra Librarian PVX012A0X3-SRZ CAD Model

Description

The PVX012A0X3-SRZ is a non-isolated PoL module from ABB Embedded Power's PicoDLynx™ series.

  • Series: PicoDLynx™
  • Type: Non-Isolated PoL Module
  • Application: Power Supply Board Mount DC-DC Converter
  • Size: 0.48" L x 0.48" W x 0.34" H
  • Features: Remote On/Off, Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Undervoltage Lockout (UVLO)
  • Power: 66W
  • Maximum Output Current: 12A
  • Input Voltage: 3V to 14.4V
  • Output Voltage: 0.6V to 5.5V
  • Efficiency: 93.9%
  • Application: ITE (Commercial)
  • Mounting: Surface Mountable
  • Package: 17-SMD Module
  • Operating Temperature: -40°C to 85°C
  • Status: Active
  • Standard Package: 200 pcs
