Same model may have multiple batches, images only for reference.

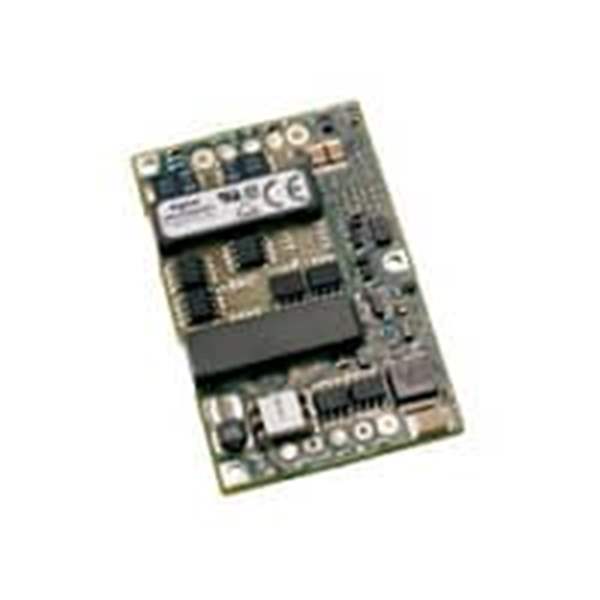

QRW025A0F1-H

Get a Quote

Part No	QRW025A0F1-H
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 83W
Datasheet	QRW025A0F1-H Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	QRW025
Package	Bulk
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	25A
Power (Watts)	83 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	10-DIP Module, 1/4 Brick
Size / Dimension	2.28" L x 1.45" W x 0.38" H (57.9mm x 36.8mm x 9.7mm)
Control Features	Enable, Active Low
Standard Package	36 pcs
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	846938-QRW025A0F1-H
Ultra Librarian 3D Model	Ultra Librarian QRW025A0F1-H CAD Model

Alternative Products

Description

The QRW025A0F1-H is a power supply DC-DC converter module from ABB Embedded Power.

Series: QRW025
Application: ITE (Commercial)
Power Rating: 83W
Features: Remote On/Off, Over Current Protection (OCP), Over Temperature Protection (OTP), Over Voltage Protection (OVP)
Output: Single
Maximum Current: 25A
Voltage: 3.3V
Input Voltage: 36V to 75V
Efficiency: 91%
Mounting Type: Through Hole
Package Size: 2.28" L x 1.45" W x 0.38" H
Voltage Isolation: 1.5kV
Enable: Active Low
Package: Bulk (36 pieces)
Operating Temperature: -40°C to 85°C
Product Status: Obsolete
Moisture Sensitivity Level: Not Applicable
