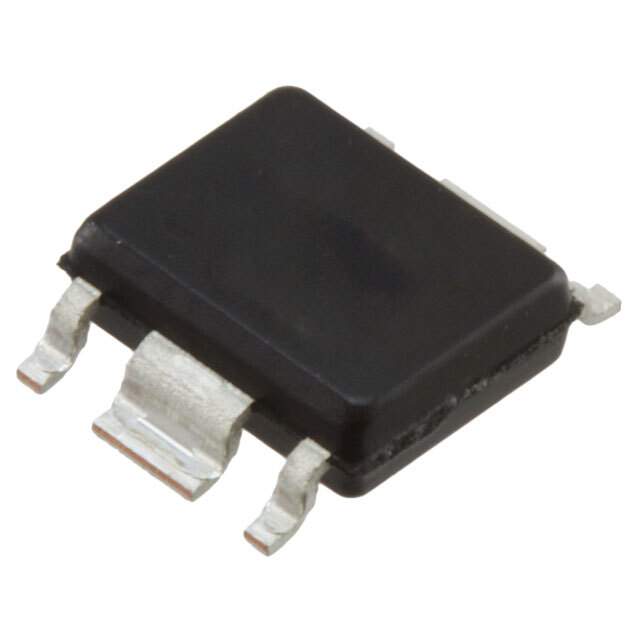

S-1142D86H-E6T2H Real Image
Same model may have multiple batches, images only for reference.

S-1142D86H-E6T2H

Part No S-1142D86H-E6T2H
Manufacturer ABLIC U.S.A. Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 8.6V 200MA 6HSOP  /  Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 6-HSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr ABLIC Inc.
Series S-1142C/DxxH
Package Tape & Reel (TR)
Product Status Not For New Designs
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 50V
Voltage - Output (Min/Fixed) 8.6V
Voltage Dropout (Max) 0.45V @ 200mA
Current - Output 200mA
Current - Quiescent (Iq) 2.5 µA
Current - Supply (Max) 9 µA
PSRR 35dB (100Hz)
Control Features Enable
Protection Features Over Current, Thermal Shutdown
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Supplier Device Package 6-HSOP
Base Product Number S-1142
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1248474-S-1142D86H-E6T2H
Ultra Librarian 3D Model Ultra Librarian S-1142D86H-E6T2H CAD Model

Description

The S-1142D86H-E6T2H is a voltage regulator from the S-1142C/DxxH series designed to operate with a current output of 200mA.

  • Series: S-1142C/DxxH
  • Current Output: 200mA
  • Current Quiescent: 2.5 µA
  • Voltage Dropout (Max): 0.45V @ 200mA
  • Voltage Input (Max): 50V
  • Voltage Output (Min/Fixed): 8.6V
  • Package: Tape and Reel (2000)
  • ECCN: EAR99
  • Manufacturer: ABLIC Inc.
  • Recommendation: Not recommended for new designs
