Same model may have multiple batches, images only for reference.

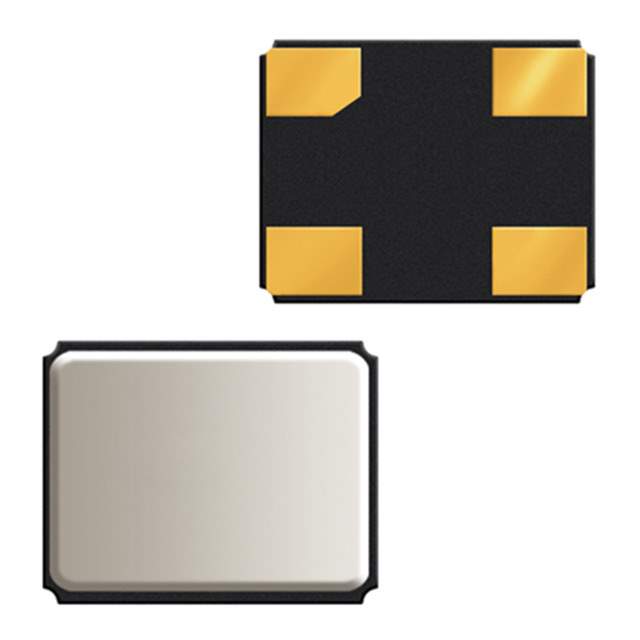

ABM10W-19.2000MHZ-8-K1Z-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM10W-19.2000MHZ-8-K1Z-T3

Part No ABM10W-19.2000MHZ-8-K1Z-T3
Manufacturer Abracon LLC
Catalog Oscillators
Datasheet
ABM10W-19.2000MHZ-8-K1Z-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM10W
Package Tape & Reel
Type MHz Crystal
Frequency 19.2 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 70 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.024" (0.60mm)
Other Names ABM10W-19.2000MHZ-8-K1J-T3,535-ABM10W-19.2000MHZ-8-K1Z-T3CT,535-ABM10W-19.2000MHZ-8-K1Z-T3TR,ABM10W-19.2000MHZ-8-K1J-T3,ABM10W-19.2000MHZ-8-K1Z-T3,535-ABM10W-19.2000MHZ-8-K1Z-T3DKR
Standard Package 3,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1285022-ABM10W-19.2000MHZ-8-K1Z-T3
Ultra Librarian 3D Model Ultra Librarian ABM10W-19.2000MHZ-8-K1Z-T3 CAD Model

Description

The ABM10W-19.2000MHZ-8-K1Z-T3 is a MHz crystal with a frequency of 19.2 MHz and frequency tolerance of ±10ppm.

  • Frequency: 19.2 MHz
  • Frequency Tolerance: ±10ppm
  • Frequency Stability: ±50ppm
  • Load Capacitance: 8pF
  • ESR: 70 Ohms
  • Height: 0.024” (0.60mm)
  • Package: 4-SMD, no lead
  • Temperature Range: -40°C to 125°C
  • REACH: Unaffected
  • HTSUS: 8541.60.0050
  • ECCN: EAR99
