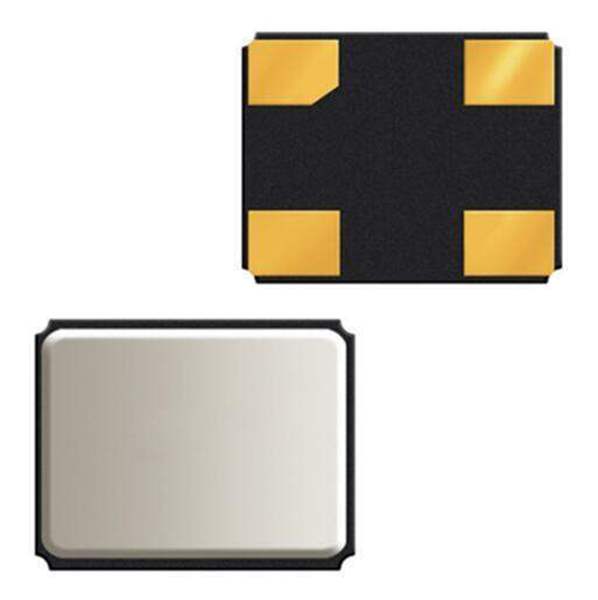

ABM12W-24.0000MHZ-8-D1X-T3Abracon LLC
Same model may have multiple batches, images only for reference.

ABM12W-24.0000MHZ-8-D1X-T3

Part No ABM12W-24.0000MHZ-8-D1X-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 24.0000MHZ 8PF SMD
Datasheet
ABM12W-24.0000MHZ-8-D1X-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Abracon LLC
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Operating Temperature -40°C ~ 85°C
Win Source Part Number WS1305032-ABM12W-24.0000MHZ-8-D1X-T3
Ultra Librarian 3D Model Ultra Librarian ABM12W-24.0000MHZ-8-D1X-T3 CAD Model

Description

• Optimized for energy saving wearables and IoT applications • Plated at exceptionally low plating capacitance, as low as 4pF, with optimized ESR • 0.4 mm max height ideally suited for height constrained designs • Seam sealed for longterm reliability<br />
