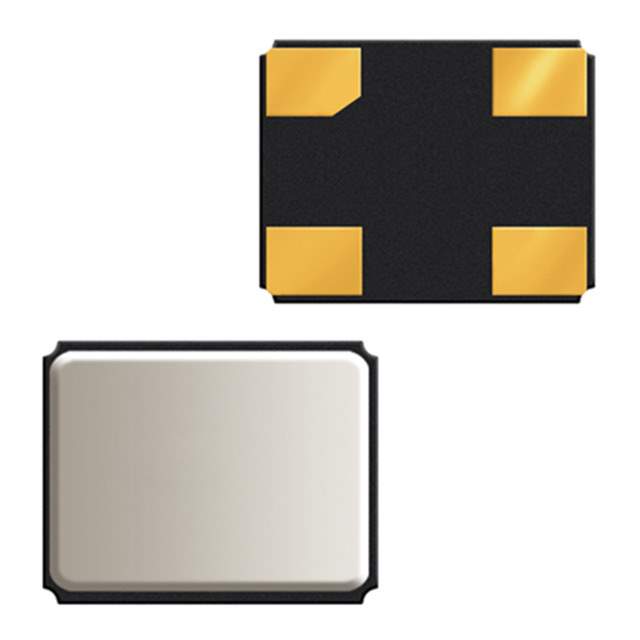

Same model may have multiple batches, images only for reference.

ABM12W-48.0000MHZ-6-B1U-T3

Name: ABM12W-48.0000MHZ-6-B1U-T3
Brand: Abracon LLC
SKU: 1186437
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ABM12W-48.0000MHZ-6-B1U-T3
Manufacturer	Abracon LLC
Catalog	Crystals
Description	CRYSTAL 48.0000MHZ 6PF SMD / 48 MHz ±10ppm Crystal 6pF 50 Ohms 4-SMD, No Lead
Datasheet	ABM12W-48.0000MHZ-6-B1U-T3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Crystals, Oscillators, Resonators>Crystals
Mfr	Abracon LLC
Series	ABM12W
Package	Tape & Reel
Type	MHz Crystal
Frequency	48 MHz
Frequency Stability	±10ppm
Frequency Tolerance	±10ppm
Load Capacitance	6pF
ESR (Equivalent Series Resistance)	50 Ohms
Operating Mode	Fundamental
Temperature Range - Operating	-20°C ~ 70°C
Mounting	SMD (SMT)
Package / Case	4-SMD, No Lead
Dimension	0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max)	0.016" (0.40mm)
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.60.0060
Other Names	535-13993-2,535-13993-6,-1154-ABM12W-48.0000MHZ-6-B1U-T3CT,-1154-ABM12W-48.0000MHZ-6-B1U-T3TR,-1154-ABM12W-48.0000MHZ-6-B1U-T3DKR,535-13993-1
Standard Package	3,000
Win Source Part Number	1186437-ABM12W-48.0000MHZ-6-B1U-T3
Ultra Librarian 3D Model	Ultra Librarian ABM12W-48.0000MHZ-6-B1U-T3 CAD Model

Alternative Products

Description

The ABM12W series MHz crystal is a high-quality electronic component manufactured by Abracon LLC.

Frequency: 48 MHz
Frequency Tolerance: ±10ppm
ESR (Equivalent Series Resistance): 50 Ohms
Load Capacitance: 6pF
Package Size: 0.063" L x 0.047" W (1.60mm x 1.20mm)
Packaging: Tape and Reel
Temperature Range: -20°C to 70°C
RoHS Compliant: Yes
