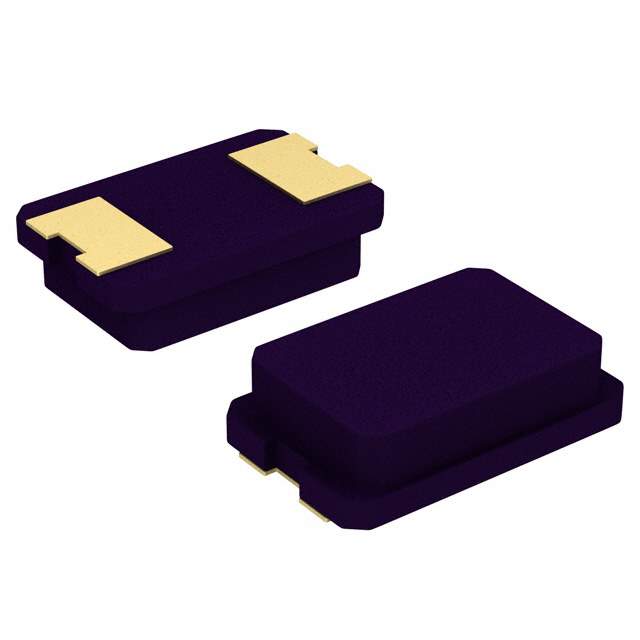

The ABM3-24.000MHZ-B2-T is a quartz crystal resonator from Abracon LLC, commonly used as a frequency control component in electronic circuits. It operates at a fundamental frequency of 24.000 MHz and is designed for surface mount applications.

Applications

• Microcontrollers and microprocessors.
• Real-time clocks (RTCs).
• Communication equipment (e.g., radios, transceivers).
• Industrial control systems.
• Consumer electronics.

Features

• Frequency: 24.000 MHz
• Frequency Tolerance: typically ±30 ppm
• Frequency Stability: typically ±50 ppm over temperature range
• Operating Temperature Range: typically -20°C to +70°C
• Load Capacitance: typically 18 pF
• ESR (Equivalent Series Resistance): typically 60 ohms
• Surface Mount Device (SMD)
• RoHS Compliant

Benefits

• Provides a stable and accurate frequency reference.
• Ensures reliable operation of electronic circuits.
• Offers good frequency stability over a wide temperature range.
• Easy to integrate into surface mount assembly processes.
• Compliant with environmental regulations.

Quartz crystals are piezoelectric devices that vibrate at a specific frequency when an electric field is applied. This characteristic makes them ideal for use as frequency references in oscillators and other timing circuits. The ABM3-24.000MHZ-B2-T is a reliable and cost-effective solution for frequency control in a variety of electronic applications.

The 'T' at the end of the part number typically indicates tape and reel packaging for automated assembly.

For detailed specifications, including dimensions, soldering recommendations, and reliability data, refer to the Abracon LLC datasheet for the ABM3-24.000MHZ-B2-T crystal.
