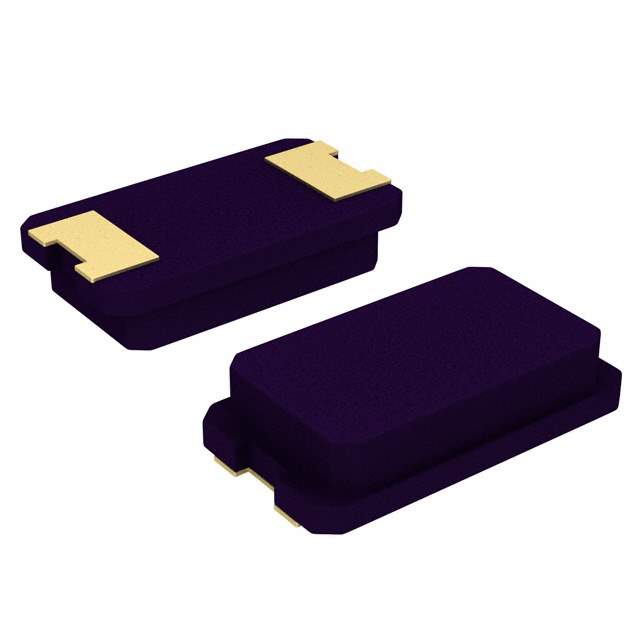

ABM7-20.000MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM7-20.000MHZ-D2Y-T

Part No ABM7-20.000MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 20.0000MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Abracon LLC
Packaging Reel
Type MHz Crystal
Frequency 20MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2-SMD, No Lead
Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Maximum) 0.055" (1.40mm)
Manufacturer Pack Quantity 1,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811240-ABM7-20.000MHZ-D2Y-T
Ultra Librarian 3D Model Ultra Librarian ABM7-20.000MHZ-D2Y-T CAD Model

Description

The Abracon LLC MHz Crystal is a high-quality electronic component that is ideal for use in a wide range of applications.

  • Frequency: 20MHz
  • ESR: 50 Ohms
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Temperature Range: -40°C to 85°C
  • Package: 2-SMD, no lead
  • Height: 0.055" (1.40mm)
  • Quantity: 1,000
  • Popularity: Medium
  • Supply and Demand Status: Limited
