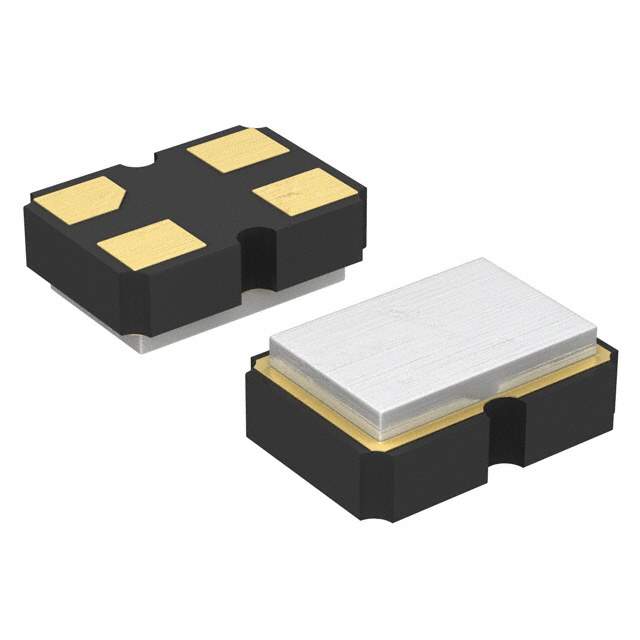

ASD1-14.7456MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASD1-14.7456MHZ-LR-T

Part No ASD1-14.7456MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 14.7456MHZ HCMOS SMD / 14.7456 MHz XO (Standard) HCMOS Oscillator 3V Enable/Disable 4-SMD, No Lead
Datasheet
ASD1-14.7456MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASD
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 14.7456 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 4mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 20µA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1046209-ASD1-14.7456MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASD1-14.7456MHZ-LR-T CAD Model

Description

This electronic component has a Win Source Part Number of 1046209-ASD1-14.7456MHZ-LR-T and belongs to the Crystals, Oscillators, Resonators>Oscillators category.

  • Series: ASD
  • Type: XO (Standard)
  • Package: Tape & Reel (TR)
  • Height: 0.039" (1.00mm)
  • Standard Package: 1,000
  • Mount: SMD (SMT)
  • Frequency: 14.7456 MHz
  • Function: Enable/Disable
  • Output: HCMOS
  • Frequency Stability: ±25ppm
  • Current Supply (Max): 4mA
  • Current Supply (Disable) (Max): 20µA
  • Voltage Supply: 3V
  • Package/Case: 4-SMD, No Lead
  • Operating Temperature: -40°C ~ 85°C
  • Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Mfr: Abracon LLC
