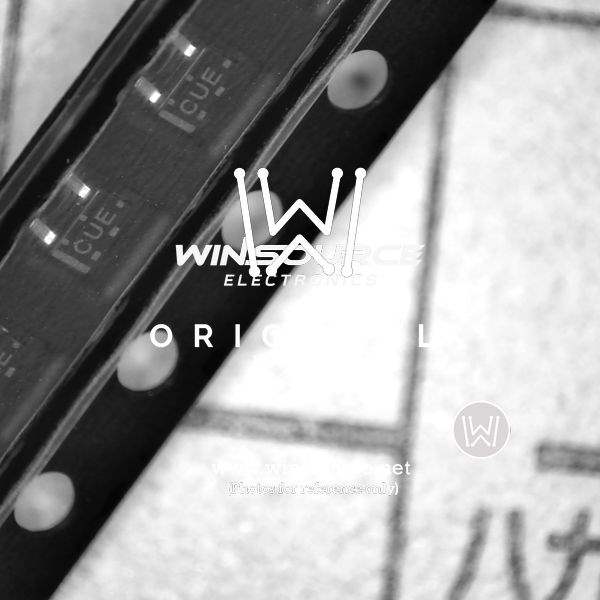

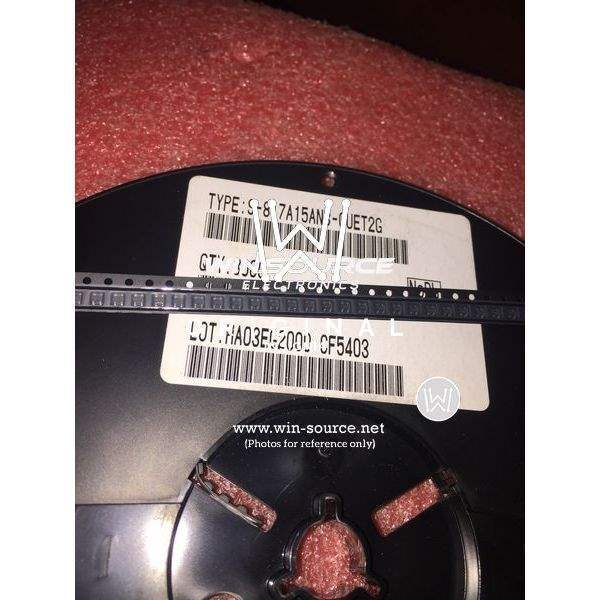

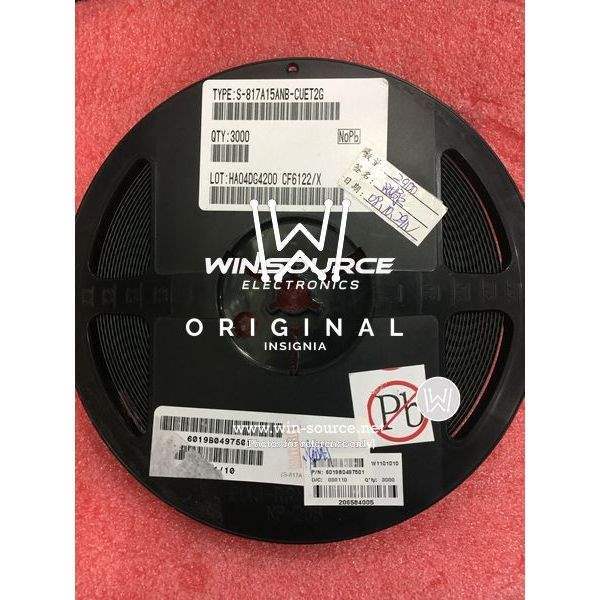

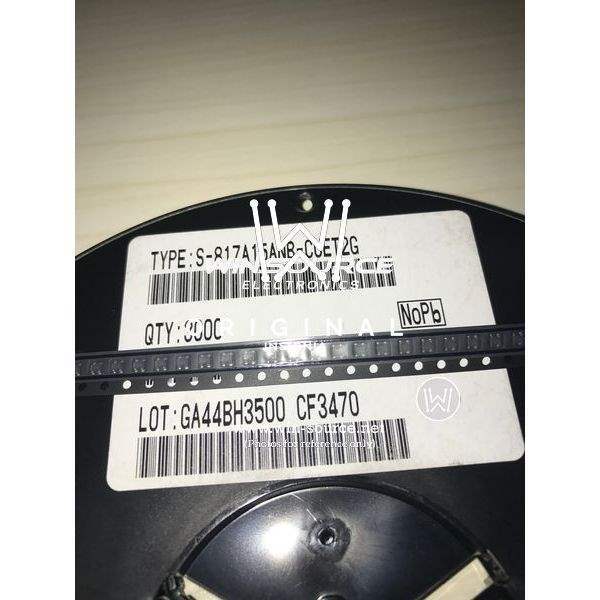

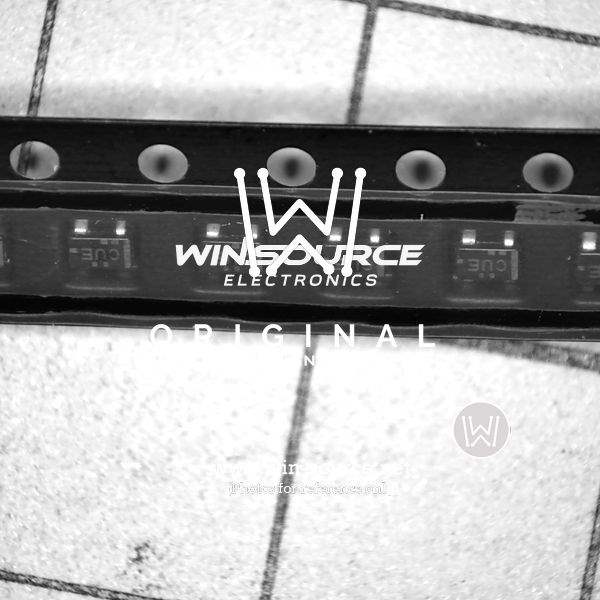

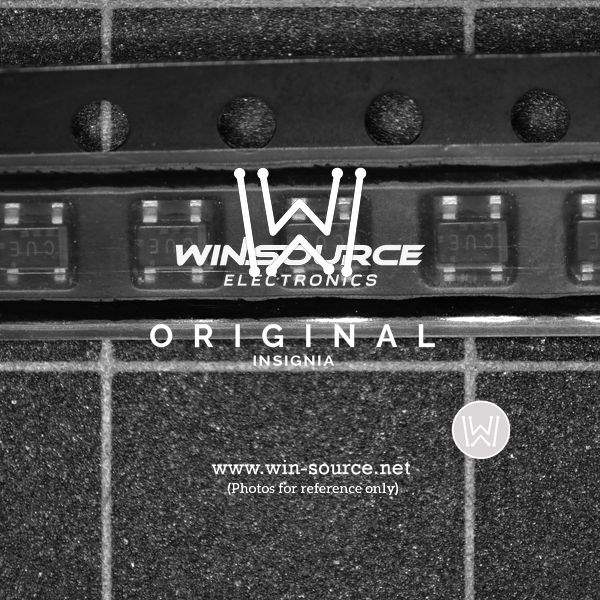

S-817A15ANB-CUET2G SII Semiconductor Corporation S-817A15ANB-CUET2G Real Image S-817A15ANB-CUET2G label picture 2 S-817A15ANB-CUET2G real image S-817A15ANB-CUET2G real image 2 S-817A15ANB-CUET2G Real Image1 S-817A15ANB-CUET2G Real Image2 S-817A15ANB-CUET2G Real Image3
Same model may have multiple batches, images only for reference.
S-817A15ANB-CUET2G SII Semiconductor Corporation S-817A15ANB-CUET2G Real Image S-817A15ANB-CUET2G label picture 2 S-817A15ANB-CUET2G real image S-817A15ANB-CUET2G real image 2 S-817A15ANB-CUET2G Real Image1 S-817A15ANB-CUET2G Real Image2 S-817A15ANB-CUET2G Real Image3
S-817A15ANB-CUET2G SII Semiconductor Corporation S-817A15ANB-CUET2G Real Image S-817A15ANB-CUET2G label picture 2 S-817A15ANB-CUET2G real image S-817A15ANB-CUET2G real image 2 S-817A15ANB-CUET2G Real Image1 S-817A15ANB-CUET2G Real Image2 S-817A15ANB-CUET2G Real Image3
Same model may have multiple batches, images only for reference.

S-817A15ANB-CUET2G

Part No S-817A15ANB-CUET2G
Manufacturer SII Semiconductor Corporation
Catalog PMIC - Voltage Regulators - Linear
Description LDO Regulator Pos 1.5V 0.02A 4-Pin(3+Tab) SC-82AB T/R / IC REG LDO 1.5V 20MA SC82AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer SII Semiconductor Corporation
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 10V
Nominal Output Voltage (Min/Fixed) 1.5V
Dropout Voltage-Max 0.99V @ 10mA
Output Current 20mA
Operating Supply Current 2.5μA
Control Protection Features Short Circuit
Temperature Range - Operating -40°C to 85°C (TA)
Regulator Topology Positive Fixed
Output Voltage 1.5V
Voltage - Dropout (Typical) 0.58V @ 10mA
Mounting SMD (SMT)
Case / Package SC-82AB
Win Source Part Number 063616-S-817A15ANB-CUET2G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name S-817
Introduction Date July 05, 1999
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian S-817A15ANB-CUET2G CAD Model

Description

The SII Semiconductor Corporation 063616-S-817A15ANB-CUET2G is an active electronic component with a high popularity in the market.

  • Regulator Type: Positive Fixed
  • Output Voltage: 1.5V
  • Maximum Input Voltage: 10V
  • Application: Short Circuit Protection
  • Estimated EOL Date: 2028
