Same model may have multiple batches, images only for reference.

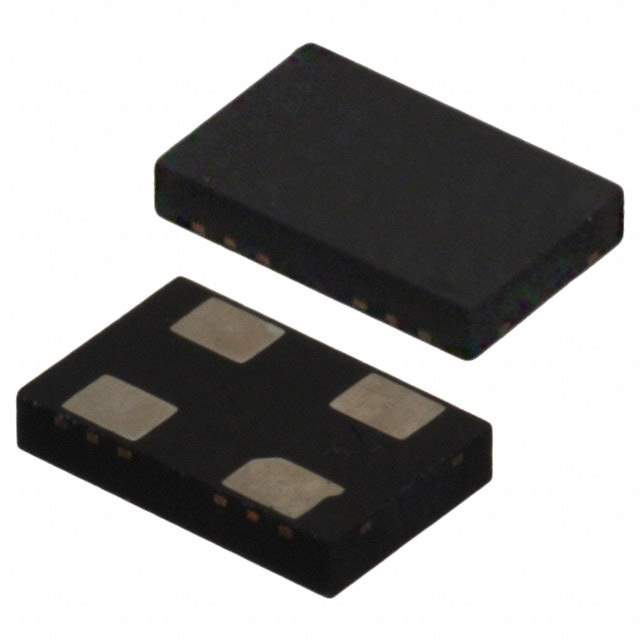

ASFLMB-24.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASFLMB-24.000MHZ-LC-T

Part No ASFLMB-24.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 24.0000MHZ LVCMOS / 24 MHz XO (Standard) LVCMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASFLMB-24.000MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASFLMB, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 24 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 16mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1348593-ASFLMB-24.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASFLMB-24.000MHZ-LC-T CAD Model

Description

The ASFLMB series XO is a high-performance crystal oscillator designed for use in various electronic applications.

  • Frequency: 24 MHz
  • Voltage Supply: 1.8V to 3.3V
  • Mounting Type: surface mountable
  • Package: 4-SMD, no-lead
  • Frequency Stability: ±50ppm
  • Current Supply: up to 16mA
  • Standby Function: yes
  • Output: LVCMOS
  • Height: 0.035 inches
  • Size: 0.197 inches by 0.126 inches
