Same model may have multiple batches, images only for reference.

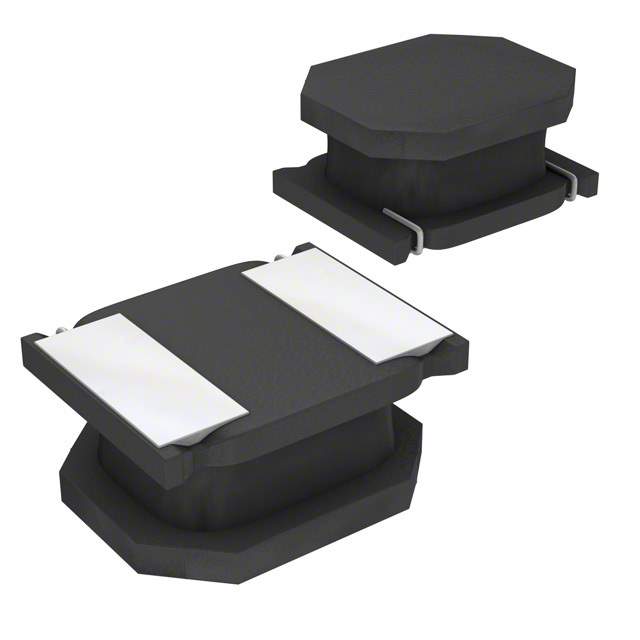

ASPI-2010HC-100M-T Real Image
Same model may have multiple batches, images only for reference.

ASPI-2010HC-100M-T

Part No ASPI-2010HC-100M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 10UH 650MA 826MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 650 mA 826mOhm Max 0806 (2016 Metric)
Datasheet
ASPI-2010HC-100M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPI-2010HC
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 650 mA
Current - Saturation (Isat) 800mA
Shielding Shielded
DC Resistance (DCR) 826mOhm Max
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-12597-2,-ASPI-2010HC-100M-TCT-ND,535-ASPI-2010HC-100M-TDKR,535-12597-1,535-ASPI-2010HC-100M-TTR,-ASPI-2010HC-100M-TTR,-535-12597-2,ASPI-2010HC-100M-T-ND,-535-12597-1,535-ASPI-2010HC-100M-TCT,535-12597-1-ND,535-12597-2-ND,-ASPI-2010HC-100M-TCT,-ASPI-2010HC-100M-TTR-ND
Standard Package 2,000
Win Source Part Number 1095770-ASPI-2010HC-100M-T
Ultra Librarian 3D Model Ultra Librarian ASPI-2010HC-100M-T CAD Model

Description

The ASPI-2010HC-100M-T is a fixed inductor manufactured by Abracon LLC. It is a drum core, wirewound type of inductor that is shielded.

  • Inductance: 10μH
  • Tolerance: ±20%
  • DC Resistance: 826mOhm Max
  • Current: 650mA
  • Package: 0806 (2016 Metric)
  • Standard Package: 2,000
  • Mounting: SMD (SMT) technology
  • Description: This device is ideal for use in a variety of applications including power supplies and filtering circuits.
