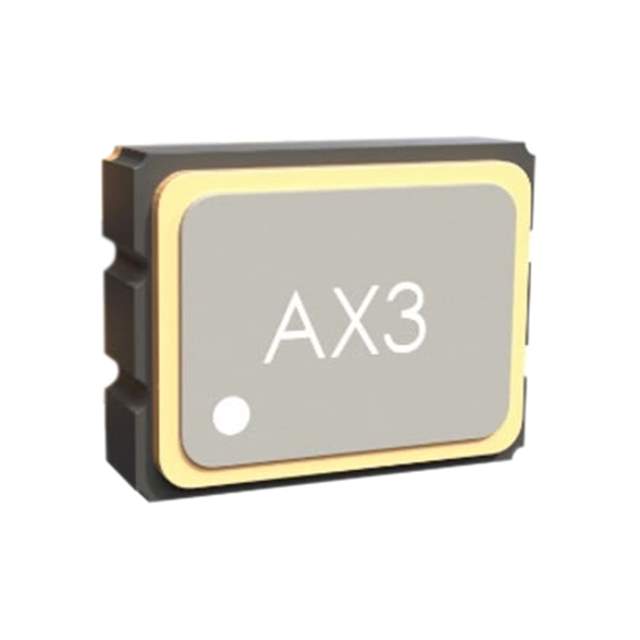

AX3DAF1-200.0000 Real Image
Same model may have multiple batches, images only for reference.

AX3DAF1-200.0000

Part No AX3DAF1-200.0000
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 200MHZ 3.3V LVDS / 200 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ClearClock™ AX3
Package Strip
Base Resonator Crystal
Type XO (Standard)
Frequency 200 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 27mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349505-AX3DAF1-200.0000
Ultra Librarian 3D Model Ultra Librarian AX3DAF1-200.0000 CAD Model

Description

The AX3 XO Oscillator is a standard oscillator with a frequency of 200 MHz from the ClearClock™ series by Abracon LLC.

  • Function: Enable/Disable
  • Output: LVDS
  • Frequency Stability: ±25ppm
  • Maximum Supply Current: 27mA (disable: 10µA)
  • Voltage Supply: 3.3V
  • Package: 6-SMD, No Lead
  • Temperature Range: -40°C ~ 85°C
  • Resonator Type: Crystal
  • ECCN: EAR99
  • REACH: Unaffected
