Same model may have multiple batches, images only for reference.

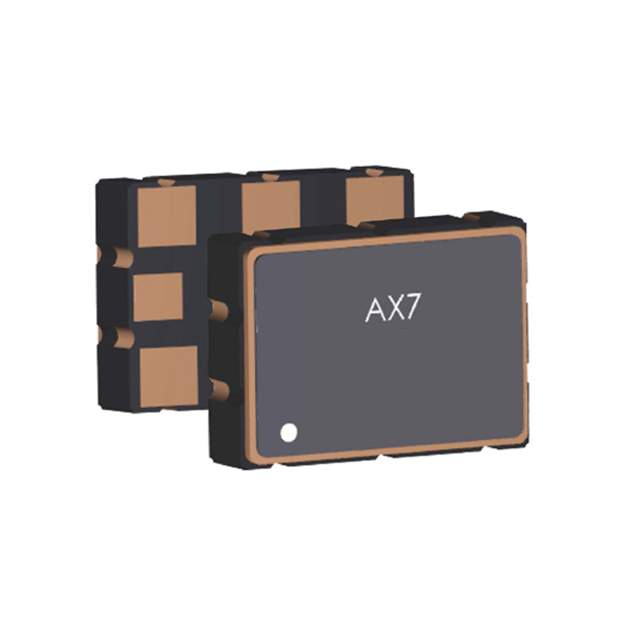

AX7DAF2-300.0000T Real Image
Same model may have multiple batches, images only for reference.

AX7DAF2-300.0000T

Part No AX7DAF2-300.0000T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 300.0000MHZ LVDS SMD / 300 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 8-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ClearClock™ AX7
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 300 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 70mA
Mounting SMD (SMT)
Package / Case 8-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Current - Supply (Disable) (Max) 65mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 250
Win Source Part Number 1058261-AX7DAF2-300.0000T
Ultra Librarian 3D Model Ultra Librarian AX7DAF2-300.0000T CAD Model

Description

The ClearClock™ AX7 series XO (Standard) from Abracon LLC is a high-quality product that offers excellent frequency stability of ±25ppm.

  • Package: 8-SMD, No Lead
  • Frequency: 300 MHz
  • Operating Temperature: -40°C ~ 85°C
  • Height: 0.075" (1.90mm)
  • Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Description: reliable choice for various applications, including industrial and commercial applications.
