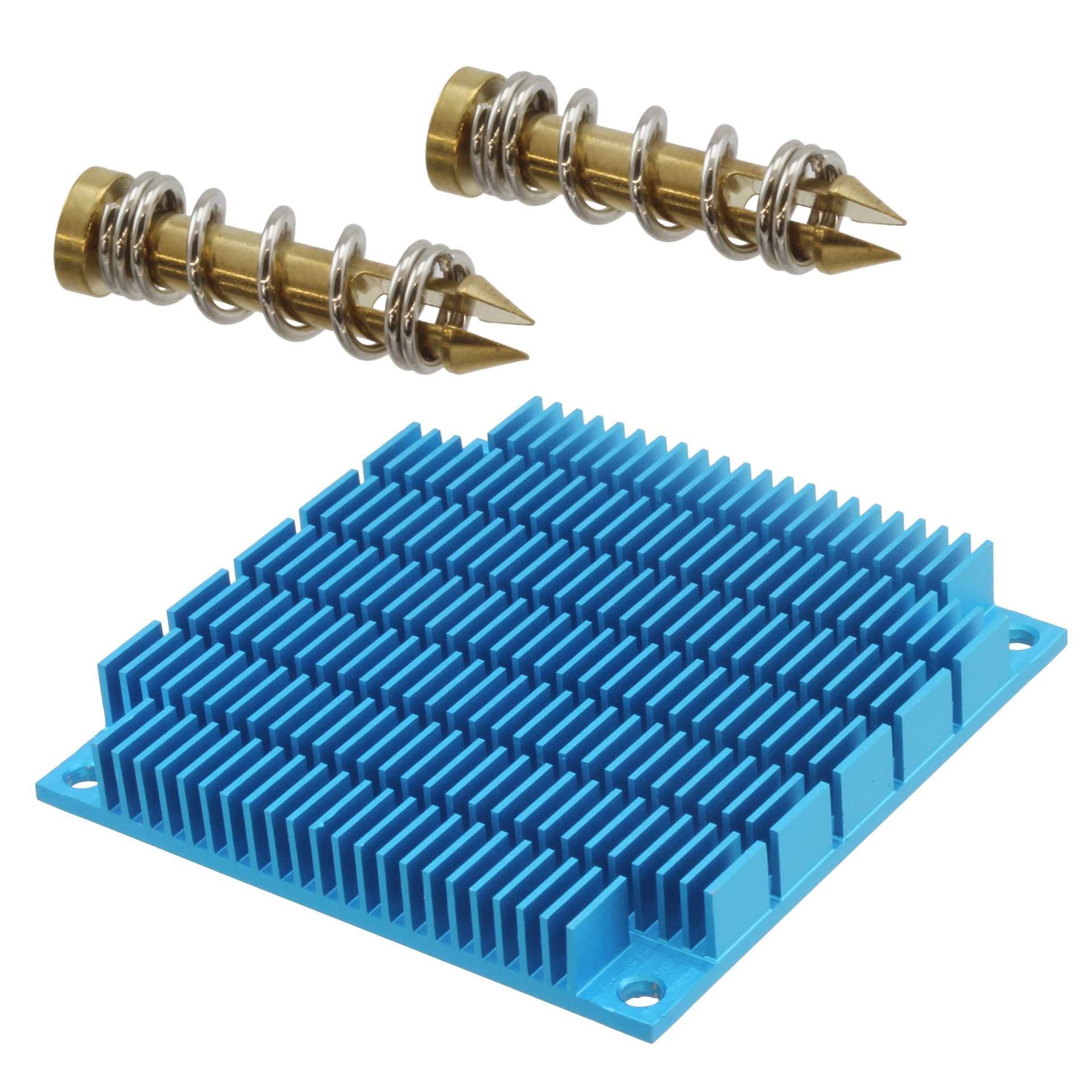

ATS-05B-133-C2-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-05B-133-C2-R0

Part No ATS-05B-133-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 70X70X10MM XCUT T766 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
ATS-05B-133-C2-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Tray
Product Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 2.756" (70.00mm)
Width 2.756" (70.00mm)
Fin Height 0.394" (10.00mm)
Thermal Resistance @ Forced Air Flow 7.42°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-05B
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 849766-ATS-05B-133-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-05B-133-C2-R0 CAD Model

Description

The pushPIN™ series top mount heat sink is a reliable cooling solution for electronic components.

  • Length: 2.756" (70.00mm)
  • Width: 2.756" (70.00mm)
  • Material: Aluminum, Blue Anodized Finish
  • Shape: Square
  • Attachment Method: Push Pin
  • Package Types: BGA, LGA, CPU, ASIC, and more
  • Thermal Resistance: 7.42°C/W @ 100 LFM Forced Air Flow
  • Manufacturer: Advanced Thermal Solutions Inc.
  • Product Status: Active
