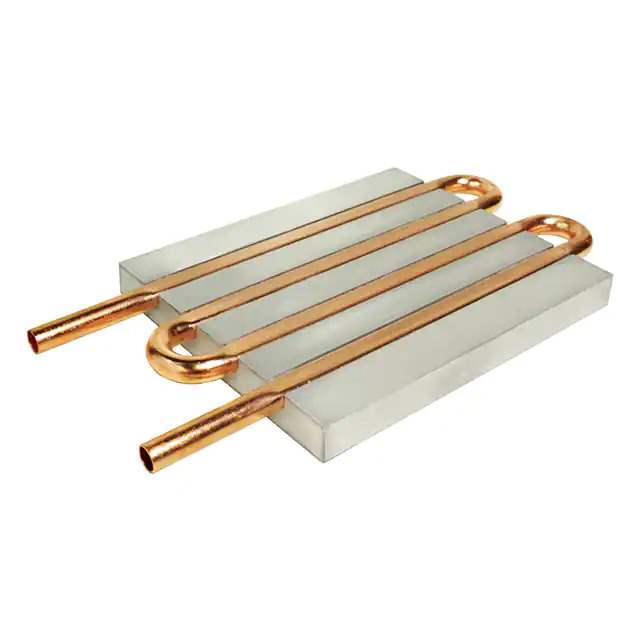

ATS-TCP-1001 Real Image
Same model may have multiple batches, images only for reference.

ATS-TCP-1001

Part No ATS-TCP-1001
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal
Description TUBED COLD PLATE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Liquid Cooling, Heating
Mfr Advanced Thermal Solutions Inc.
Series ATS-TCP
Package Box
Product Status Active
Product Type Passive, Cold Plate
Power - Cooling 400 W
Flow Rate 0.50 - 2.00GPM (1.9-7.6LPM)
Thermal Resistance @ GPM 0.024°C/W @ 2.0 GPM
Dimensions - Overall 5.98" L x 5.00" W x 0.59" H (152.0mm x 127.0mm x 15.0mm)
Base Product Number ATS-TCP
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8419.50.5000
Win Source Part Number 936261-ATS-TCP-1001
Ultra Librarian 3D Model Ultra Librarian ATS-TCP-1001 CAD Model

Description

The ATS-TCP series liquid cooling and heating solution, with Win Source Part Number 936261-ATS-TCP-1001, is a passive cold plate designed for thermal management in electronic components.

  • Package: box package
  • Dimensions: 5.98" L x 5.00" W x 0.59" H (152.0mm x 127.0mm x 15.0mm)
  • Manufacturer: Advanced Thermal Solutions Inc.
  • Cooling Capacity: 400 W
  • Flow Rate: 0.50 - 2.00GPM (1.9-7.6LPM)
  • Thermal Resistance: 0.024°C/W @ 2.0 GPM
  • Product Status: active
  • REACH: unaffected
