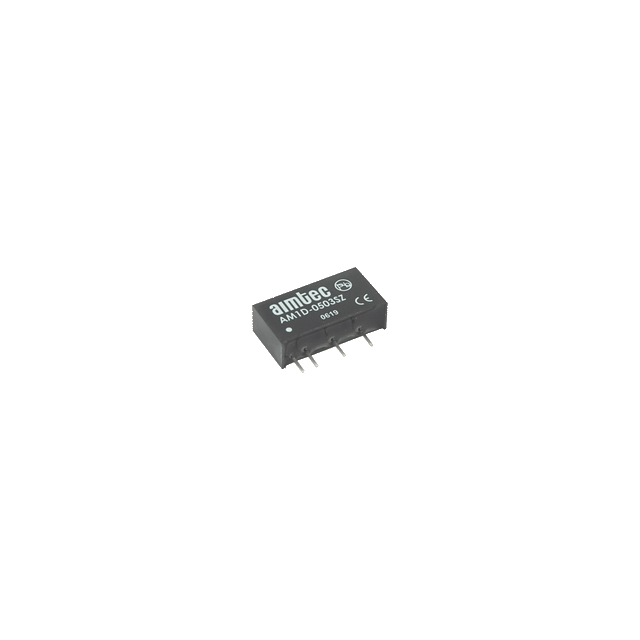

AM1D-0505SH30Z Real Image
Same model may have multiple batches, images only for reference.

AM1D-0505SH30Z

Part No AM1D-0505SH30Z
Manufacturer AIMTEC
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 1W  /  Isolated Module DC DC Converter 1 Output 5 ~ 5V 200mA 4.5V - 5.5V Input
Datasheet
AM1D-0505SH30Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr aimtec
Series AM1D-Z (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Efficiency 81%
Mounting Type Through Hole
Dimension 0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Approval Agency CE, cULus, cURus
Base Product Number AM1D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2721-AM1D-0505SH30Z
Standard Package 20
Win Source Part Number 1170668-AM1D-0505SH30Z
Ultra Librarian 3D Model Ultra Librarian AM1D-0505SH30Z CAD Model

Description

The AM1D-0505SH30Z is an isolated module DC-DC converter that is designed to meet the power needs of ITE (Commercial) applications.

  • Power Rating: This product has a power rating of 1W and an efficiency of 81%.
  • Voltage Isolation: The AM1D-0505SH30Z has a voltage isolation of 3 kV and is capable of delivering a maximum output current of 200mA.
  • Package: The product is supplied in a tube package and has a through-hole mounting type.
  • Performance: The AM1D-0505SH30Z is a reliable and efficient component that can be used in various applications with a high level of performance.
