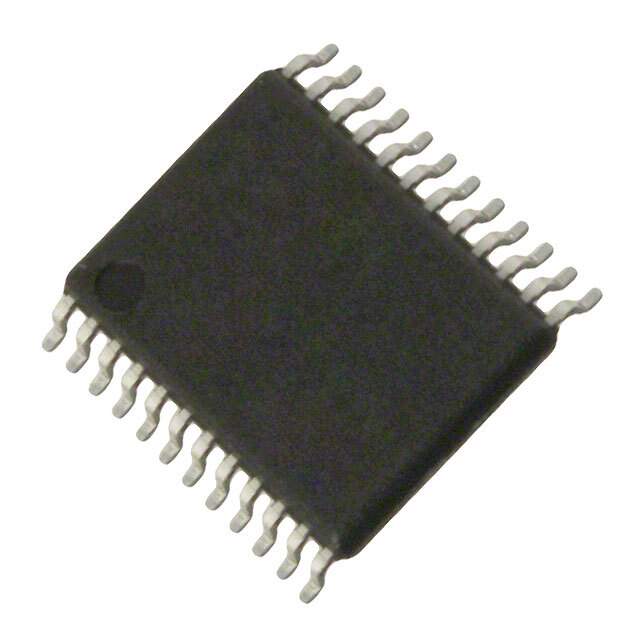

The AK4117VFP-E2 is a digital audio interface receiver manufactured by AKM (Asahi Kasei Microdevices). It is designed to receive and decode digital audio signals from various sources, such as CD players, DVD players, and digital audio workstations (DAWs), and convert them into a format suitable for audio processing and playback.

Applications:

• AV Receivers: Used as the input receiver for digital audio signals in home theater systems.
• Sound Cards: Integrated into computer sound cards to receive digital audio from external sources.
• Digital Audio Workstations (DAWs): Provides a digital audio input for recording and mixing audio in professional recording studios.
• CD Players and DVD Players: Used as the output interface to transmit digital audio signals to external amplifiers or processors.
• Digital Mixing Consoles: Provides a digital audio input for mixing and processing audio signals from various sources.

Features:

• Supports Multiple Audio Formats: Accepts a wide range of digital audio formats, including S/PDIF, AES/EBU, and IEC60958.
• Low Jitter: Provides high-quality audio reproduction with minimal jitter.
• Built-in PLL: Features a built-in phase-locked loop (PLL) for clock recovery.
• Comprehensive Error Detection: Implements error detection and correction mechanisms to ensure reliable data transmission.
• Flexible Output Options: Offers various output options, including I2S and DSD.

Benefits:

• High-Quality Audio Reproduction: Delivers pristine audio quality with low noise and distortion.
• Versatile Connectivity: Supports a wide range of digital audio sources and formats.
• Reliable Data Transmission: Ensures reliable data transmission with robust error detection and correction mechanisms.
• Easy Integration: Simplifies system design with its built-in PLL and flexible output options.
• Improved Audio Performance: Enhances the overall audio performance of audio systems.

Additional Details:

The AK4117VFP-E2 is typically packaged in a VFP (Very thin Fine Pitch Package). It requires a stable power supply for proper operation. The device incorporates various control registers that allow for configuration of input and output formats, clock settings, and other parameters. A microcontroller is typically used to program these registers.

The AK4117VFP-E2 is often used in conjunction with other audio processing ICs, such as digital-to-analog converters (DACs) and audio amplifiers, to create complete audio systems.
