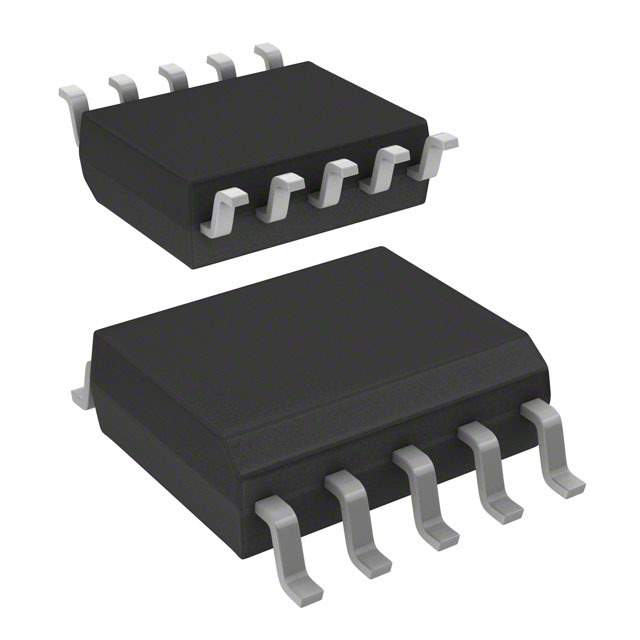

A3909GLNTR-T Real Image
Same model may have multiple batches, images only for reference.

A3909GLNTR-T

Part No A3909GLNTR-T
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER PAR 10SSOP
Datasheet
A3909GLNTR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Reel - TR
Status Active
Applications DC Motors, General Purpose, Stepper Motors
Load Type Inductive
Technology DMOS
Rds On (Typ) 1.6 Ohm LS + HS
Channel Output Current 1A
Supply Voltage - Operating 4 V to 18 V
Voltage - Load 4 V to 18 V
Temperature Range - Operating -40°C to 150°C (TJ)
Fault Protection Current Limiting, Over Temperature
Mounting SMD (SMT)
Case / Package 10-SSOP
Win Source Part Number 1011166-A3909GLNTR-T
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian A3909GLNTR-T CAD Model

Description

The A3909GLNTR-T is a DMOS motor driver that is designed to operate with a supply voltage range of 4V to 18V.

  • Supply Voltage Range: 4V to 18V
  • Motor Type: DC and stepper motors
  • Load Type: Inductive
  • Package: 10-SSOP
  • Mounting: Surface mount
  • Fault Protection: Current limiting and over-temperature protection
  • Channel Output Current: 1A
  • RdsOn: 1.6 Ohm LS + HS
  • Application: Ideal for use in industrial applications such as DC motors and general-purpose stepper motors
