Same model may have multiple batches, images only for reference.

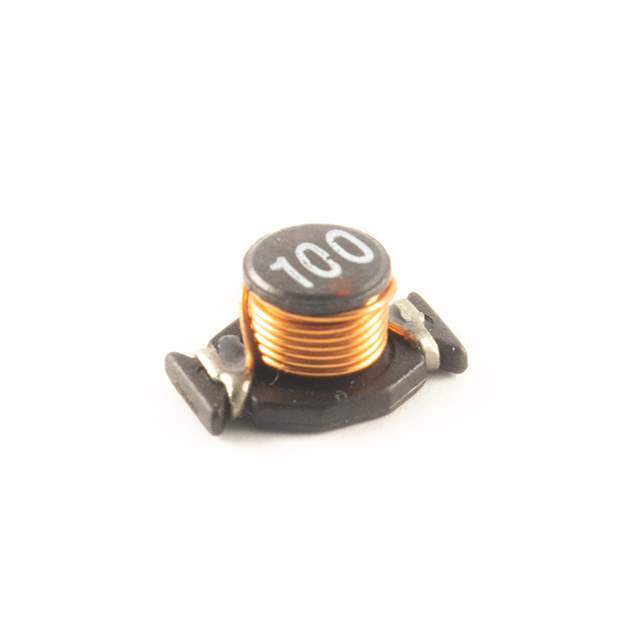

PCHC25-150M-RC Real Image
Same model may have multiple batches, images only for reference.

PCHC25-150M-RC

Part No PCHC25-150M-RC
Manufacturer Allied Components International
Catalog Fixed Inductors
Description 15UH 20% PWR CHIP HIGH CURRENT / 15 µH Unshielded Wirewound Inductor 1.2 A 170mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Allied Components International
Series -
Package Tape & Reel (TR)
Type Wirewound
Material - Core -
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 1.5A
Shielding Unshielded
DC Resistance (DCR) 170mOhm Max
Q @ Freq -
Frequency - Self Resonant 30MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.350" L x 0.240" W (8.89mm x 6.10mm)
Height - Seated (Max) 0.197" (5.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
HTSUS 8504.50.4000
Standard Package 2 pcs
Win Source Part Number 1382203-PCHC25-150M-RC
Ultra Librarian 3D Model Ultra Librarian PCHC25-150M-RC CAD Model

Description

The 1382203-PCHC25-150M-RC is a wirewound inductor in the category of fixed inductors.

  • Package: Tape & Reel
  • Mounting Type: Surface Mount
  • Size: 0.350" L x 0.240" W (8.89mm x 6.10mm)
  • Inductance: 15 μH
  • Height (Seated): 0.197" (5.00mm)
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • DC Resistance (DCR): 170mOhm max
  • Current Rating: 1.2A
  • Self-Resonant Frequency: 30MHz
  • Manufacturer: Allied Components International
