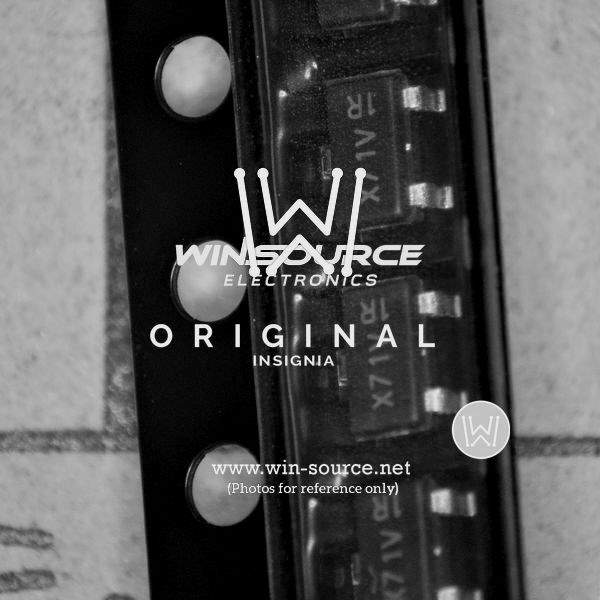

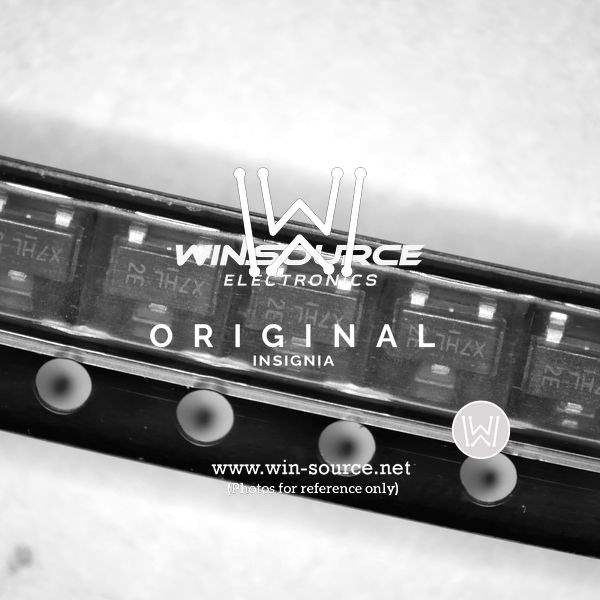

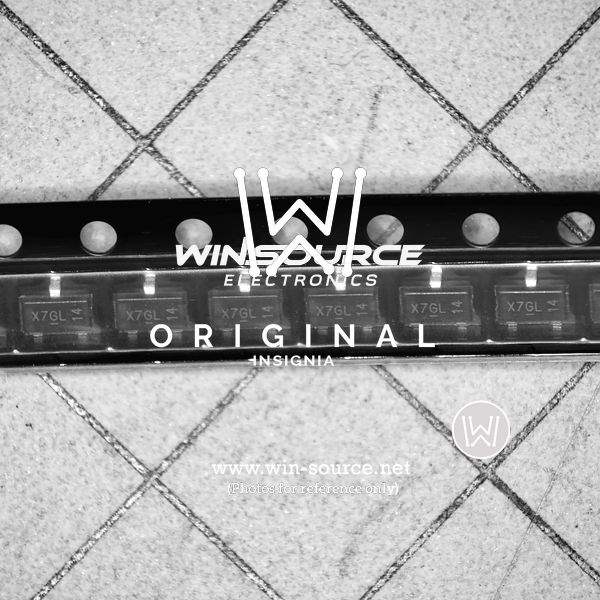

AO3407A Alpha & Omega Semiconductor Inc. AO3407A Real Image AO3407A real image1840 AO3407A Real Image1 AO3407A Real Image2
Same model may have multiple batches, images only for reference.
AO3407A Alpha & Omega Semiconductor Inc. AO3407A Real Image AO3407A real image1840 AO3407A Real Image1 AO3407A Real Image2
AO3407A Alpha & Omega Semiconductor Inc. AO3407A Real Image AO3407A real image1840 AO3407A Real Image1 AO3407A Real Image2
Same model may have multiple batches, images only for reference.

AO3407A

Part No AO3407A
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET P-CH 30V 4.3A 3-Pin SOT-23 / MOSFET P-CH 30V 4.3A SOT23
Datasheet
AO3407A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 4.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 16nC @ 10V
Max Input Capacitance 830pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 1.4W (Ta)
Maximum Rds On at Id,Vgs 48 mOhm @ 4.3A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23-3L
Dimension TO-236-3, SC-59, SOT-23-3
Win Source Part Number 009722-AO3407A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name AO3407A
Introduction Date May 06, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian AO3407A CAD Model

Description

Overview of AO3407A

The AO3407A is a high-performance N-channel MOSFET offering excellent switching capabilities and efficiency. This makes it a prime choice for engineers focusing on optimizing power solutions in compact devices.

Applications

  • Battery-powered applications
  • DC motor control
  • LED drivers
  • Load protection circuits

Features and Benefits

  • Minimal gate charge, enhancing efficiency
  • Robust design suitable for diverse environments
  • High-speed processing capability
  • Flexible operation for various voltage levels

Additional Details

Engineered to support high-density applications, the AO3407A MOSFET is suitable for modern compact electronic designs.
