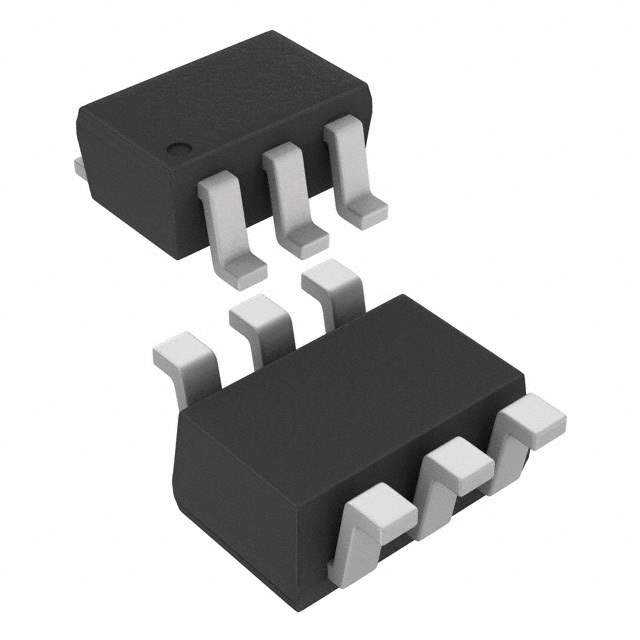

AO7600

Part No AO7600
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N/P-CH 20V SC70-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
FET Type N and P-Channel
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 900mA, 600mA
Maximum Rds On at Id,Vgs 300 mOhm @ 900mA, 4.5V
Gate-Source Threshold Voltage 900mV @ 250μA
Max Gate Charge 1.9nC @ 4.5V
Max Input Capacitance 120pF @ 10V
Maximum Power Dissipation 300mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-6
Win Source Part Number 100507-AO7600
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AO7600 CAD Model

Description

AO7600 MOSFET Transistor

The AO7600 MOSFET transistor is designed with advanced technology to offer unparalleled efficiency and reliability. It is perfect for high-power applications and ensures stable and efficient operation with minimal heat production. Its versatility ensures compatibility across a wide range of electronic projects.

Features and Benefits:

  • Greater power handling capabilities.
  • Low thermal resistance for enhanced heat management.
  • Optimized for low power consumption.
  • Durable under varied environmental conditions.

Applications/Projects:

  • High-performance computing hardware
  • Hybrid vehicle power systems
  • Industrial power control
  • Advanced power supply units

The AO7600 is designed to cater to the needs of modern electronic systems with efficiency and durability.
