Same model may have multiple batches, images only for reference.

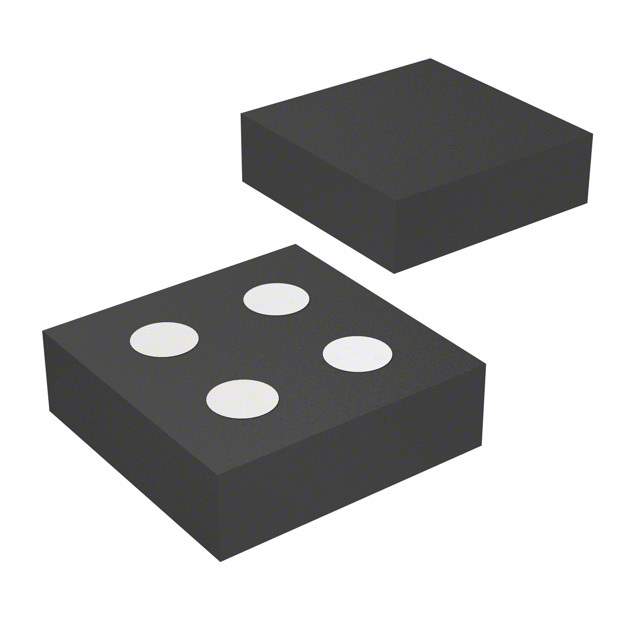

AOC2414 Real Image
Same model may have multiple batches, images only for reference.

AOC2414

Part No AOC2414
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 8V 4.5A MCSP1.57 / Trans MOSFET N-CH 8V 4.5A 4-Pin Alpha DFN T/R
Datasheet
AOC2414 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 8V
Current - Continuous Drain (Id) @ 25°C 4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.2V, 2.5V
Vgs(th) (Maximum) @ Id 800mV @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 32nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 2042pF @ 4V
Vgs (Maximum) ±5V
Power Dissipation (Maximum) 550mW (Ta)
Rds On (Maximum) @ Id, Vgs 19 mOhm @ 1.5A, 2.5V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 4-AlphaDFN (1.57x1.57)
Package 4-SMD, No Lead
Win Source Part Number 768547-AOC2414
Popularity Medium
Supply and Demand Status Limited
Family Name AOC2414
Introduction Date December 03, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AOC2414 CAD Model

Description

The Alpha & Omega Semiconductor Inc. has manufactured this MOSFET electronic component with a Win Source Part Number of 768547-AOC2414.

  • Operating Temperature Range: -55°C ~ 150°C (TJ)
  • Package: 4-SMD, No Lead
  • Status: Obsolete(EOL)
  • Family Name: AOC2414
  • Drive Voltage: 1.2V, 2.5V
  • Manufacturer Package: 4-AlphaDFN (1.57x1.57)
  • Maximum Gate Charge (Qg) @ Vgs: 32nC @ 4.5V
  • Maximum Input Capacitance (Ciss) @ Vds: 2042pF @ 4V
  • Estimated EOL Date: Obsolete / end of life
