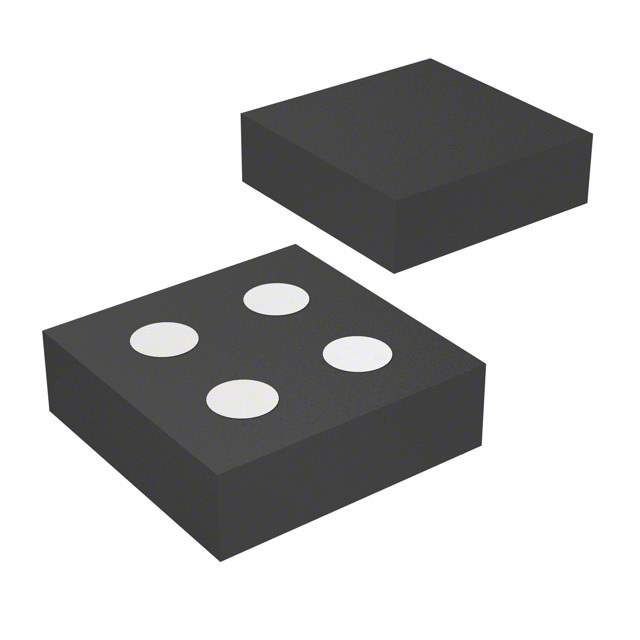

AOC2415

Get a Quote

Part No	AOC2415
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 20V 3.5A 4WLCSP / Trans MOSFET P-CH 20V 3.5A 4-Pin Alpha DFN
Datasheet	AOC2415 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel package
Part Status	Obsolete(EOL)
Channel Type Type	P
Technology	MOSFET
Drain Source Voltage	20V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Vgs(th) (Maximum) @ Id	1V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs	28nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds	1685pF @ 10V
Vgs (Maximum)	±8V
Power Dissipation (Maximum)	550mW (Ta)
Rds On (Maximum) @ Id, Vgs	33 mOhm @ 1.5A, 4.5V
Operating Temperature Range	-55°C ~ 150°C (TJ)
Mounting	SMD
Manufacturer Package	4-AlphaDFN (1.57x1.57)
Package	4-SMD, No Lead
Win Source Part Number	768548-AOC2415
Popularity	Medium
Supply and Demand Status	Limited
Family Name	AOC2415
Introduction Date	November 26, 2012
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian AOC2415 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. MOSFET is a 4-SMD, no lead packaged device that is suitable for use in discrete semiconductor products. It has the following specifications:

Maximum Power Dissipation: 550mW @ -55°C to 150°C (TJ)
Drain-Source Voltage: 20V
Channel Type: P
Maximum Gate-Source Voltage: ±8V
Maximum Continuous Drain Current: 3.5A @ 25°C (Ta)
Input Capacitance: 1685pF @ 10V
Gate Charge: 28nC @ 4.5V
Maximum Rds On: 33 mOhm @ 1.5A, 4.5V
Status: Obsolete (EOL)
Introduction Date: November 26, 2012
Estimated EOL Date:
Halogen-Free: Yes
ECCN: EAR99
Supply and Demand: Limited
