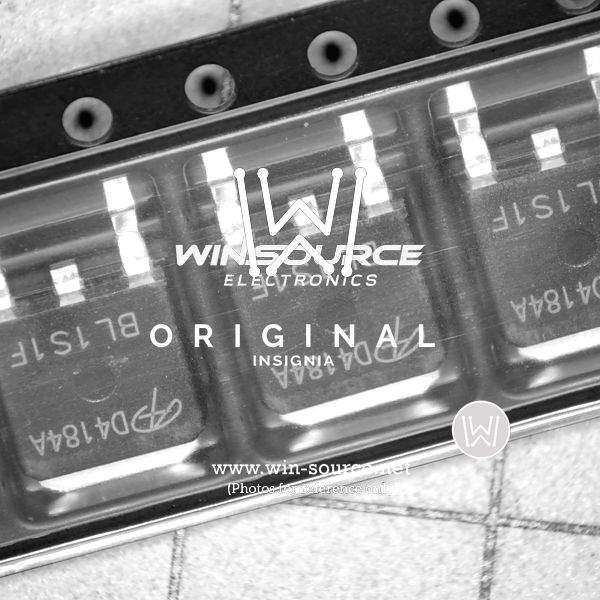

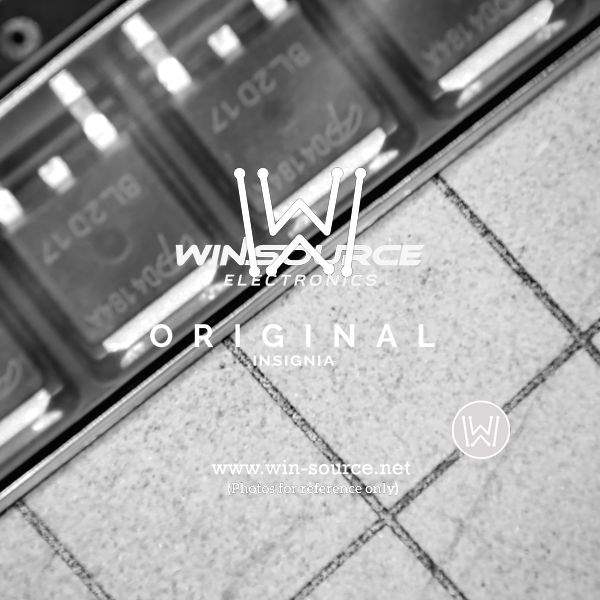

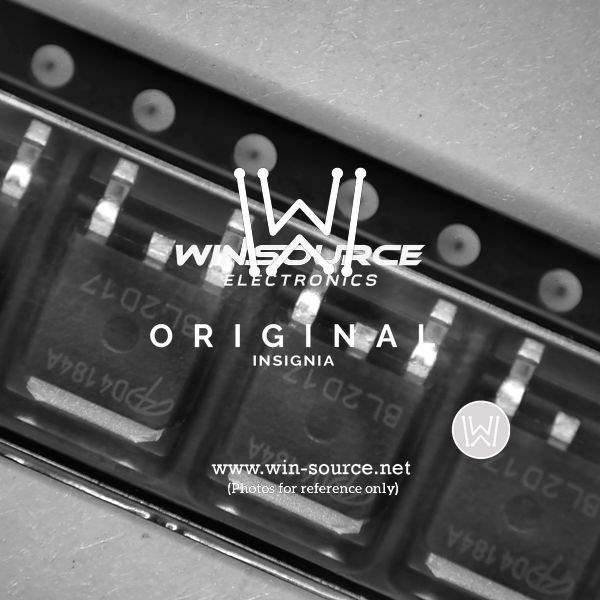

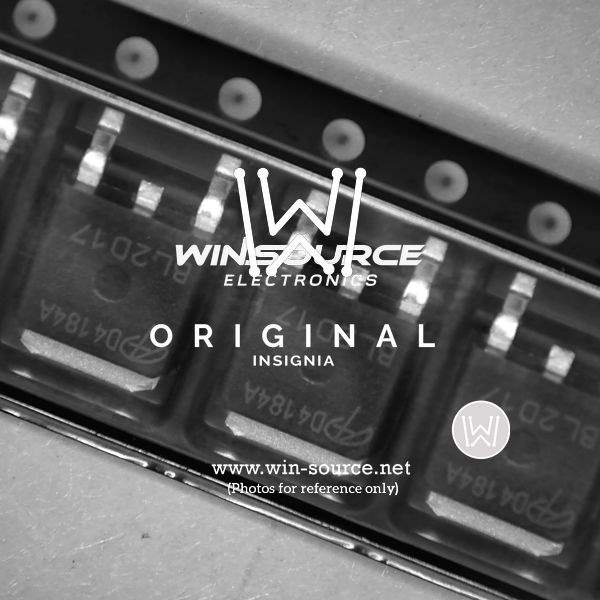

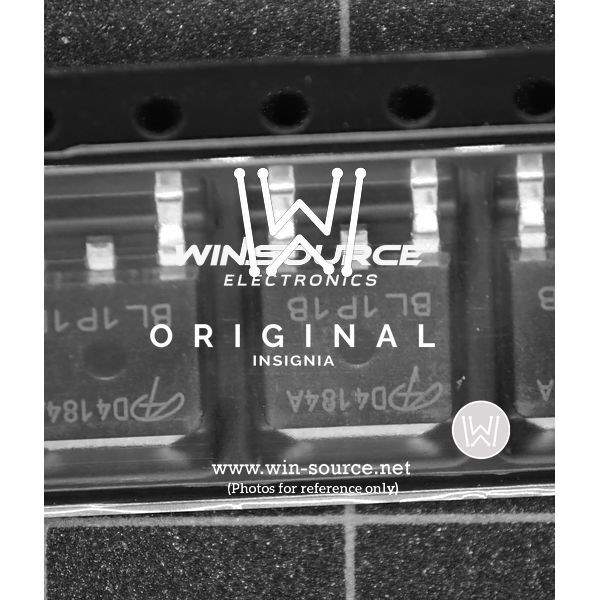

AOD4184A Real Image AOD4184A real image1865 AOD4184A Real Image1 AOD4184A Real Image2 AOD4184A Real Image3 AOD4184A Real Image4
Same model may have multiple batches, images only for reference.
AOD4184A Real Image AOD4184A real image1865 AOD4184A Real Image1 AOD4184A Real Image2 AOD4184A Real Image3 AOD4184A Real Image4
AOD4184A Real Image AOD4184A real image1865 AOD4184A Real Image1 AOD4184A Real Image2 AOD4184A Real Image3 AOD4184A Real Image4
Same model may have multiple batches, images only for reference.

AOD4184A

Part No AOD4184A
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 50A TO252
Datasheet
AOD4184A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 40V
Continuous Drain Current at 25°C 13A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.6V @ 250μA
Max Gate Charge 33nC @ 10V
Max Input Capacitance 1800pF @ 20V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.3W (Ta), 50W (Tc)
Maximum Rds On at Id,Vgs 7 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package TO-252, (D-Pak)
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 127158-AOD4184A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AOD4184A CAD Model

Description

The AOD4184A is a versatile N-channel MOSFET, perfect for high-efficiency switching applications. It features a low on-resistance and a fast switching speed, making it ideal for modern electronic projects.

Applications:

  • DC-DC converters
  • Motor drives
  • Power management for portable devices
  • Load switching circuits

Features and Benefits:

  • Low RDS(on) minimizes power losses
  • High-speed switching for efficient operation
  • Robust design for reliable performance
  • Compact packaging suited for space-constrained applications

This component is designed to deliver optimal performance in a range of electronic environments, enhancing reliability and efficiency.
