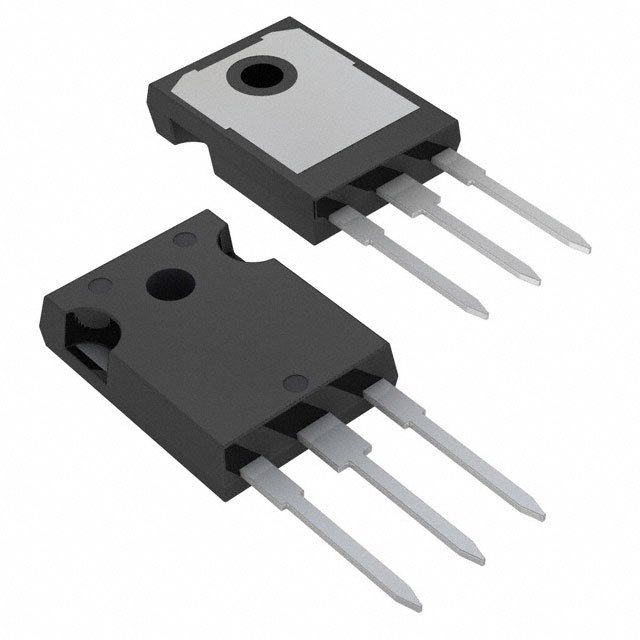

AOK20B135D1 Alpha & Omega Semiconductor Inc.
Same model may have multiple batches, images only for reference.

AOK20B135D1

Part No AOK20B135D1
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog IGBTs - Single
Description IGBT 1350V 20A 340W TO-247
Datasheet
AOK20B135D1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Tube/Rail
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 1350V
Maximum Current Collector 40A
Pulsed Collector Current 80A
Collector-emitter saturation voltage(Max) 1.8V @ 15V, 20A
Maximum Power Dissipation 340W
Total Switching Energy(Ets) 1.05mJ (off)
Input Type Standard
Gate Charge 66nC
Turn-on and Turn-off delay time -/156ns
Testing Conditions 600V, 20A, 15 Ohm, 15V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-247
Win Source Part Number 1016965-AOK20B135D1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOK20B135D1 CAD Model

Description

The AOK20B135D1 is an IGBT transistor manufactured by Alpha & Omega Semiconductor Inc.

  • Supply and Demand Status: balanced
  • Collector-Emitter Breakdown Voltage: 1350V
  • Maximum Collector Current: 40A
  • Maximum Power Dissipation: 340W
