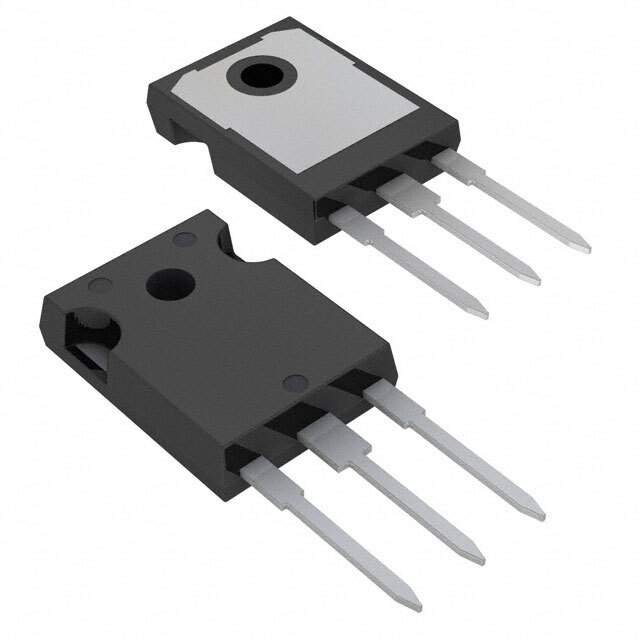

AOK40B60D1 Real Image
Same model may have multiple batches, images only for reference.

AOK40B60D1

Part No AOK40B60D1
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog IGBTs - Single
Description IGBT 600V 80A 278W TO247
Datasheet
AOK40B60D1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Series Alpha IGBT
Packaging Tube
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 80A
Current - Collector Pulsed (Icm) 140A
Vce(on) (Maximum) @ Vge, Ic 2.4V @ 15V, 40A
Power - Max 278W
Switching Energy 1.55mJ (on), 300μJ (off)
Input Type Standard
Gate Charge 45nC
Td (on/off) @ 25°C 29ns/74ns
Test Condition 400V, 40A, 7.5 Ohm, 15V
Reverse Recovery Time (trr) 127ns
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247
Win Source Part Number 768554-AOK40B60D1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AOK40B60D1 CAD Model

Description

The AOK40B60D1 is an Alpha IGBT series product manufactured by Alpha & Omega Semiconductor Inc.. It is a discrete semiconductor product that is mounted through a hole with the following specifications:

  • Popularity: Medium
  • Package: Tube
  • Current Collector (Ic): 80A
  • Voltage Collector Emitter Breakdown (Maximum): 600V
  • Power Rating: 278W
  • Reverse Recovery Time (trr): 127ns
  • Switching Energy: 1.55mJ (on), 300μJ (off)
  • Gate Charge: 45nC
  • td (on/off) @ 25°C: 29ns/74ns
