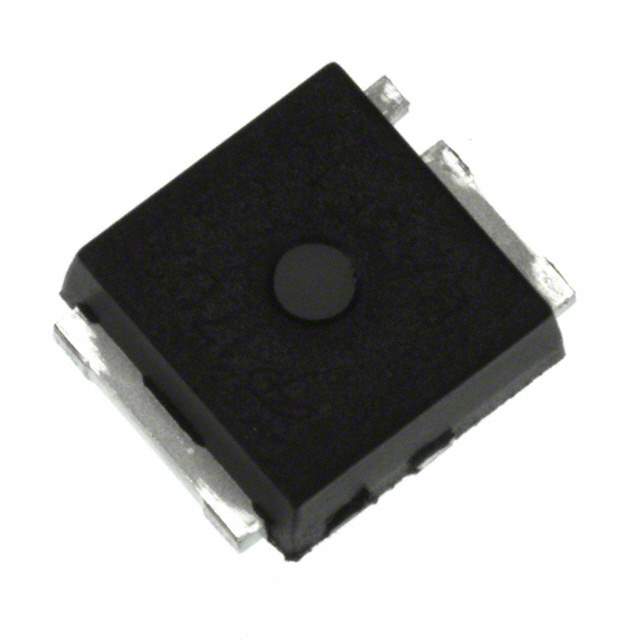

AOL1418 Real Image
Same model may have multiple batches, images only for reference.

AOL1418

Part No AOL1418
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 85A 8ULTRASO
Datasheet
AOL1418 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 15A (Ta), 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.6V @ 250μA
Max Gate Charge 32nC @ 4.5V
Max Input Capacitance 1600pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.08W (Ta), 100W (Tc)
Maximum Rds On at Id,Vgs 6 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package UltraSO-8
Dimension 3-PowerSMD, Flat Leads
Win Source Part Number 106329-AOL1418
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOL1418 CAD Model

Description

Product Overview

The AOL1418 offers cutting-edge technology suitable for both modern and legacy systems, providing a flexible solution for various needs.

Key Features and Benefits

  • Versatile Compatibility: Supports a broad range of technical specifications and applications.
  • Advanced Efficiency: Maximizes output while maintaining low power consumption.
  • Robust Security Features: Enhances safety and security in sensitive systems.

Applications

  1. Security Systems
  2. Automated Control Systems
  3. Renewable Energy Projects
  4. Advanced Research Equipment

The AOL1418 is perfect for developers seeking reliable efficiency and enhanced performance in a multitude of scenarios.
