The AON6368 is an N-Channel MOSFET type electronic component from Alpha & Omega Semiconductor Inc. that is ideal for various applications.

• Mounting Type: SMD (SMT)
• Packaging: Reel - TR
• Maximum Power Dissipation: 6.2W (Ta), 27W (Tc)
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
• Status: Active
• Operating Temperature Range: -55°C to 150°C (TJ)

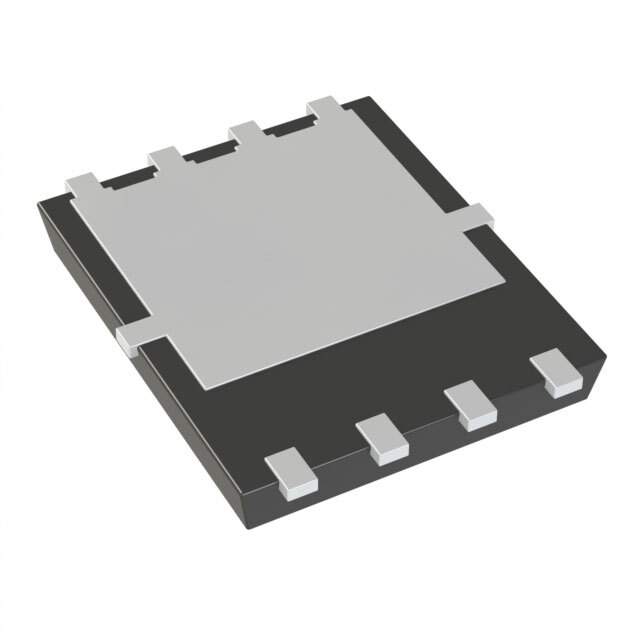

• Case / Package: 8-DFN (5x6)
• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current @ 25°C: 25A (Ta), 52A (Tc)
• Gate-Source Threshold Voltage: 2.2V @ 250μA
• Maximum Gate Charge: 13nC @ 10V
• Maximum Input Capacitance: 820pF @ 15V
• Maximum Gate-Source Voltage: ±20V
• Maximum Rds On @ Id,Vgs: 6.1 mOhm @ 20A, 10V
