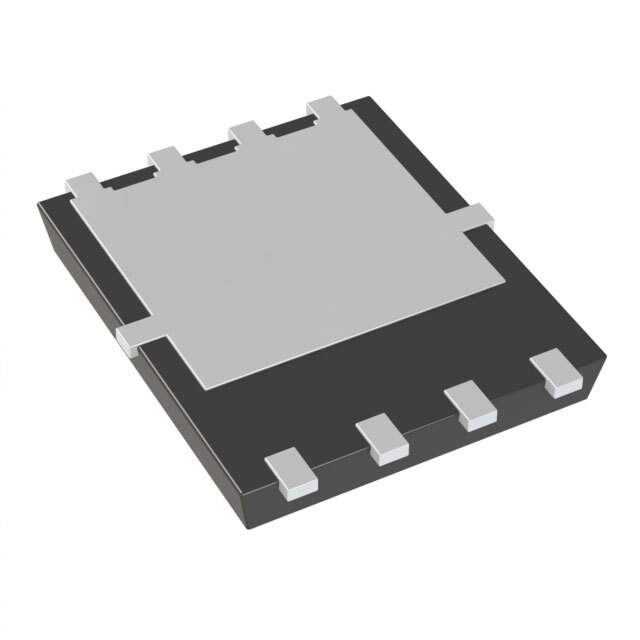

AON6504 Real Image
Same model may have multiple batches, images only for reference.

AON6504

Part No AON6504
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 51A 8DFN / Trans MOSFET N-CH 30V 85A 8-Pin DFN EP T/R
Datasheet
AON6504 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 51A (Ta), 85A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.2V @ 250μA
Max Gate Charge 60nC @ 10V
Max Input Capacitance 2719pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 7.3W (Ta), 83W (Tc)
Maximum Rds On at Id,Vgs 1.8 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (5x6)
Dimension 8-PowerSMD, Flat Leads
Win Source Part Number 137198-AON6504
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name AON6504
Introduction Date November 29, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AON6504 CAD Model

Description

Features and Benefits

  • High-speed switching for efficiency
  • Low gate charge to reduce driving requirements
  • Improved thermal performance

Applications and Projects

  • DC-DC converters
  • Battery management systems
  • Industrial power supplies

The AON6504 is engineered to deliver high-speed switching performance with minimal gate charge, enhancing its suitability for a broad range of power conversion applications. Its improved thermal performance ensures stable operation even in demanding environments.
