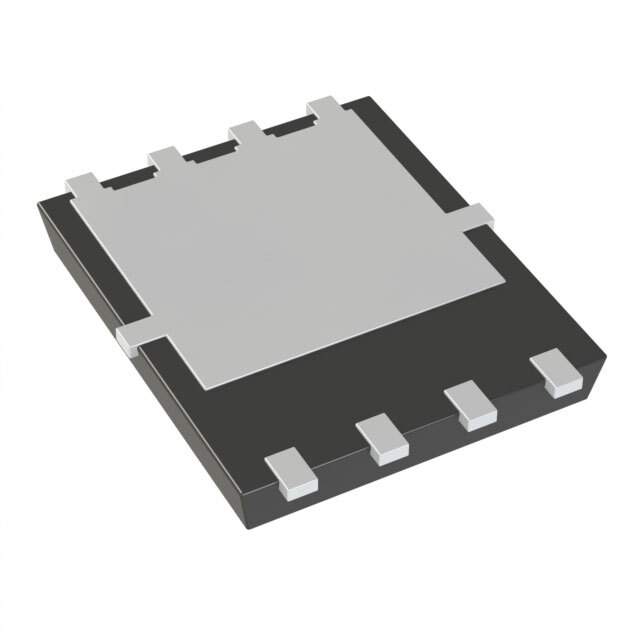

AON6520

Name: AON6520
Brand: Alpha & Omega Semiconductor Inc.
SKU: 431640
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	AON6520
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 11A DFN5X6
Datasheet	AON6520 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel - TR
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	11A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.5V @ 250μA
Max Gate Charge	24nC @ 10V
Max Input Capacitance	1380pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	1.9W (Ta), 31W (Tc)
Maximum Rds On at Id,Vgs	8.5 mOhm @ 20A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-DFN (5x6)
Dimension	8-PowerSMD, Flat Leads
Win Source Part Number	1017069-AON6520
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian AON6520 CAD Model

Alternative Products

Description

The Alpha & Omega Semiconductor Inc. AON6520 is a N-Channel MOSFET designed for discrete semiconductor products.

Mounting Type: SMD (SMT)
Package: 8-DFN (5x6)
Mounting: Reel
Power Dissipation: 1.9W (Ta) and 31W (Tc)
Drive Voltage: 4.5V, 10V
Temperature Range: -55°C to 150°C (TJ)
Drain-Source Breakdown Voltage: 30V
Continuous Drain Current @ 25°C: 11A (Ta) and 50A (Tc)
Gate-Source Threshold Voltage: 2.5V @ 250μA
Maximum Gate Charge: 24nC @ 10V
Popularity: Medium
Supply and Demand Status: Sufficient
