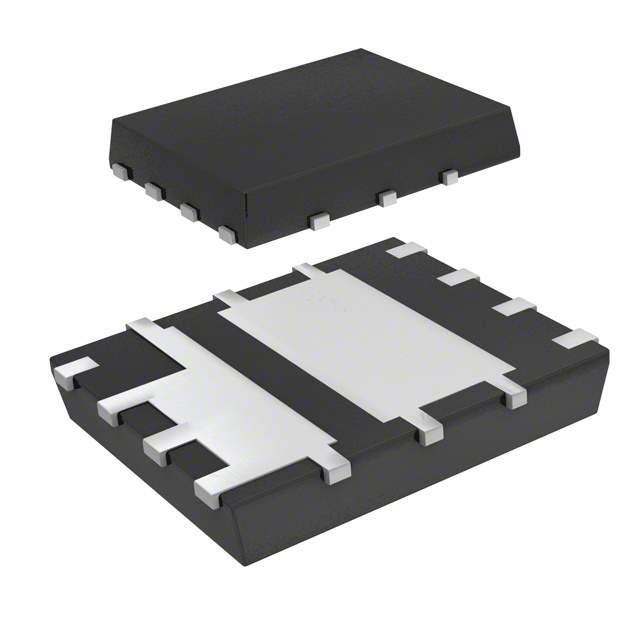

AON6906A Real Image
Same model may have multiple batches, images only for reference.

AON6906A

Part No AON6906A
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 9.1A/10A 8DFN
Datasheet
AON6906A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 9.1A, 10A
Maximum Rds On at Id,Vgs 14.4 mOhm @ 9.1A, 10V
Gate-Source Threshold Voltage 2.4V @ 250μA
Max Gate Charge 9nC @ 10V
Max Input Capacitance 670pF @ 15V
Maximum Power Dissipation 1.9W, 2W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (5x6)
Win Source Part Number 1017102-AON6906A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON6906A CAD Model

Description

The Alpha & Omega Semiconductor Inc. 2 N-Channel (Half Bridge) FET, with logic level gate, is a discrete semiconductor product designed for use in a wide range of applications.

  • Package: 8-DFN (5x6)
  • Temperature Range: -55°C to 150°C (TJ)
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current @ 25°C: 9.1A, 10A
  • Gate-Source Threshold Voltage: 2.4V @ 250μA
  • Maximum Gate Charge: 9nC @ 10V
  • Maximum Input Capacitance: 670pF @ 15V
  • Maximum Rds On @ Id,Vgs: 14.4 mOhm @ 9.1A, 10V
