Same model may have multiple batches, images only for reference.

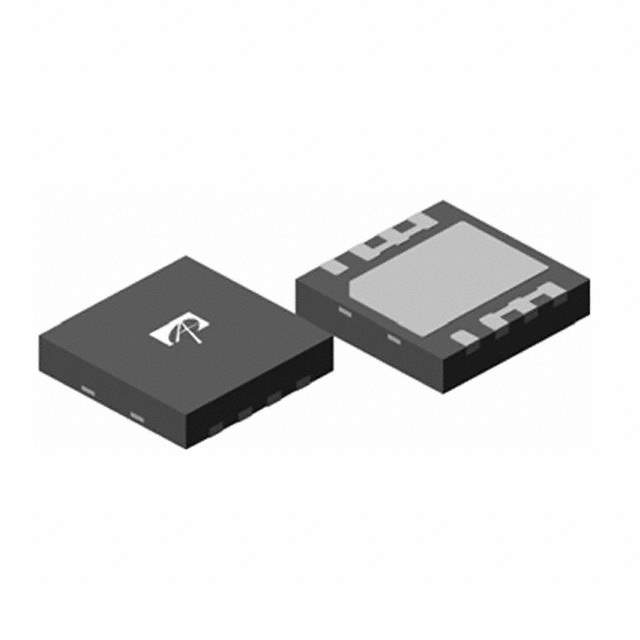

AON7902 Real Image
Same model may have multiple batches, images only for reference.

AON7902

Part No AON7902
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 8A/13A 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Half Bridge)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 8A, 13A
Maximum Rds On at Id,Vgs 21 mOhm @ 8A, 10V
Gate-Source Threshold Voltage 2.3V @ 250μA
Max Gate Charge 11nC @ 10V
Max Input Capacitance 710pF @ 15V
Maximum Power Dissipation 1.8W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN-EP (3.3x3.3)
Win Source Part Number 1017159-AON7902
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON7902 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON7902 is a 2 N-channel (Half Bridge) FET that is designed for use in discrete semiconductor products.

  • FET Type: 2 N-channel (Half Bridge)
  • Package: 8-DFN-EP (3.3x3.3)
  • Maximum Power Dissipation: 1.8W
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 8A, 13A @ 25°C
  • Gate-Source Threshold Voltage: 2.3V @ 250μA
  • Maximum Gate Charge: 11nC @ 10V
  • Maximum Input Capacitance: 710pF @ 15V
  • Maximum Rds On @ Id,Vgs: 21 mOhm @ 8A, 10V
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Mounting: SMD (SMT)
  • Supply and Demand Status: Balance
