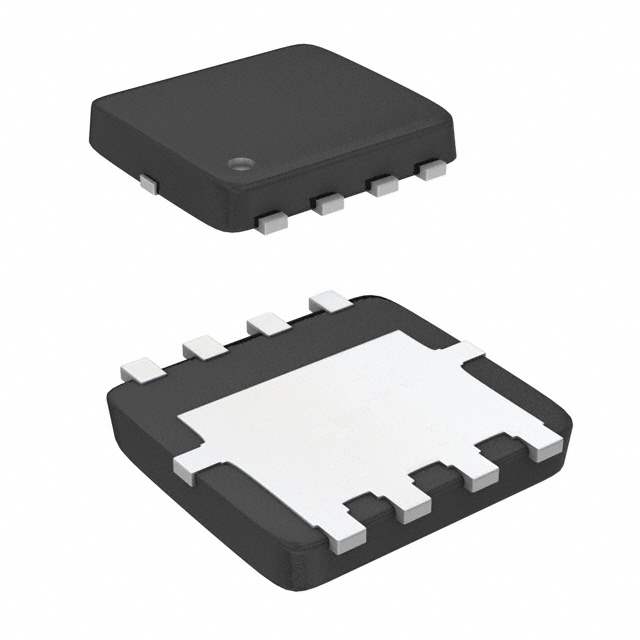

AONR21357

Part No AONR21357
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 21A/34A 8DFN / P-Channel 30 V 21A (Ta), 34A (Tc) 5W (Ta), 30W (Tc) Surface Mount 8-DFN-EP (3x3)
Datasheet
AONR21357 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr Alpha & Omega Semiconductor Inc.
Package Tape & Reel
Product Status Active
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 21A (Ta), 34A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 7.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 70 nC @ 10 V
Vgs (Max) ±25V
Input Capacitance (Ciss) (Max) @ Vds 2830 pF @ 15 V
Power Dissipation (Max) 5W (Ta), 30W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Supplier Device Package 8-DFN-EP (3x3)
Package / Case 8-PowerVDFN
Base Product Number AONR213
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 849874-AONR21357
Ultra Librarian 3D Model Ultra Librarian AONR21357 CAD Model

Description

The AONR21357 is a P-channel MOSFET transistor designed for discrete semiconductor applications. Bolded product name: AONR21357. Manufacturer is Alpha & Omega Semiconductor Inc.

  • Vdss (Drain to Source Voltage): 30V
  • Current Rating: 21A @ 25°C (Ta), 34A @ 25°C (Tc)
  • Series: AONR213
  • Package: Tape and Reel
  • Standard Package Quantity: 5,000 pieces
  • Package Type: 8-PowerVDFN
  • Mounting Type: Surface Mount
  • Qg (Gate Charge) @ 10V: 70nC
  • Ciss (Input Capacitance) @ 15V: 2830pF
  • Power Dissipation: 5W (Ta), 30W (Tc)
  • Temperature Range: -55°C to 150°C (TJ)
  • Product Status: Active
  • REACH Regulations: Unaffected
