Same model may have multiple batches, images only for reference.

AONR34332C

Name: AONR34332C
Brand: Alpha & Omega Semiconductor Inc.
SKU: 1278410
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

Part No	AONR34332C
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Alpha & Omega Semiconductor Inc.
Series	AlphaMOS
Package	Tape & Reel (TR)
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	48A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Rds On (Max) @ Id, Vgs	1.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	105 nC @ 10 V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	4175 pF @ 15 V
Power Dissipation (Max)	6.2W (Ta), 83.3W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)

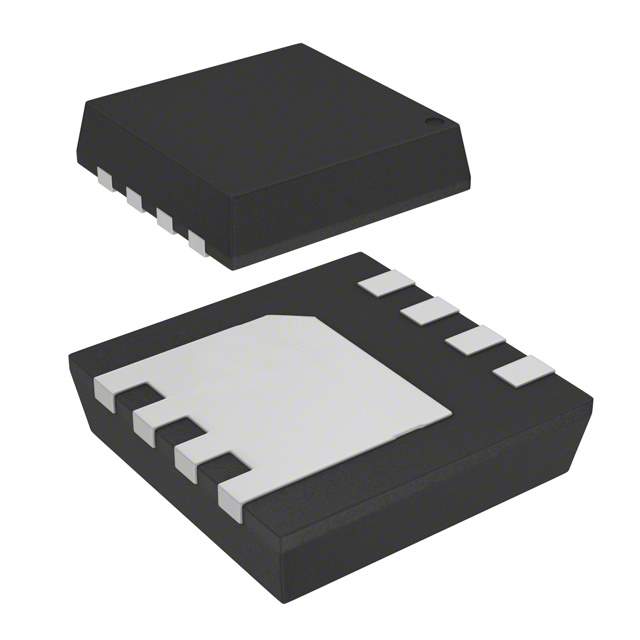

Supplier Device Package	8-DFN-EP (3.3x3.3)
Package / Case	8-PowerWDFN
Base Product Number	AONR34332
Other Names	785-AONR34332CTR
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1278410-AONR34332C
Ultra Librarian 3D Model	Ultra Librarian AONR34332C CAD Model

Alternative Products

Description

The AONR34332C is an N-Channel MOSFET transistor from Alpha & Omega Semiconductor Inc.

Series: AlphaMOS
Package: Tape & Reel
Drain to Source Voltage: 30V
Continuous Drain Current: 48A (Ta) or 50A (Tc)
On-Resistance: 1.8mOhm @ 20A, 10V
Gate Threshold Voltage: 1.2V @ 250μA
Power Dissipation: 6.2W (Ta) or 83.3W (Tc)
Package Size: 3.3x3.3
Temperature Range: -55°C to 150°C (TJ)
Gate Charge: 105nC @ 10V
Input Capacitance: 4175pF @ 15V
ECCN Category: EAR99
