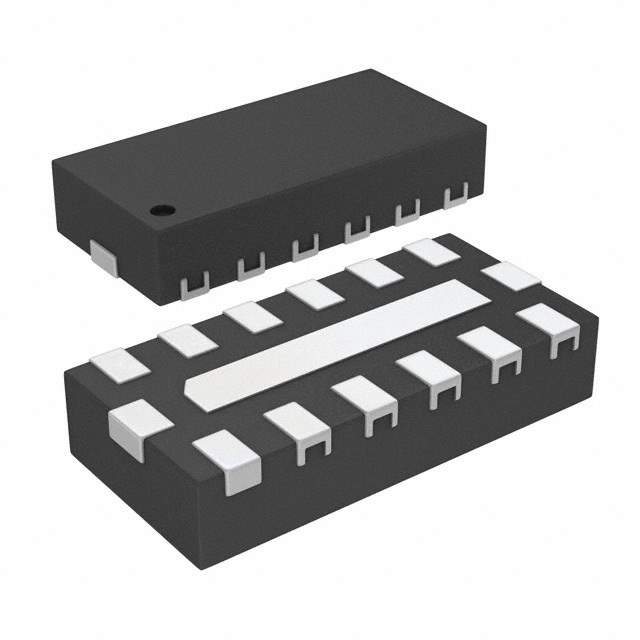

AOZ8075DI Real Image
Same model may have multiple batches, images only for reference.

AOZ8075DI

Part No AOZ8075DI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/8PF SMD
Datasheet
AOZ8075DI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 6
Center / Cutoff Frequency 220MHz (Cutoff)
Attenuation Value -20dB @ 1GHz to 3GHz
Resistance - Channel (Ohms) 100
Current 20mA
Values R = 100 Ohms, C = 8pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 5V
Mounting SMD (SMT)
Dimension 0.098" L x 0.047" W (2.50mm x 1.20mm)
Height 0.024" (0.60mm)
Win Source Part Number 078258-AOZ8075DI
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AOZ8075DI CAD Model

Description

AOZ8075DI Description

The AOZ8075DI component is designed to offer robust protection and high efficiency in power management applications, known for its adaptability and reliability.

Applications

  • IoT devices
  • Wearable electronics
  • Battery charging stations
  • Renewable energy systems

Features and Benefits

  • Robust electrical protection: Safeguards against electrical faults
  • High adaptability: Versatile across multiple designs
  • Compact form factor: Perfect for space-limited applications
  • Energy efficient: Optimizes battery life

Additional Details: AOZ8075DI is well-suited for advanced applications requiring reliable performance and excellent power management in compact settings.
