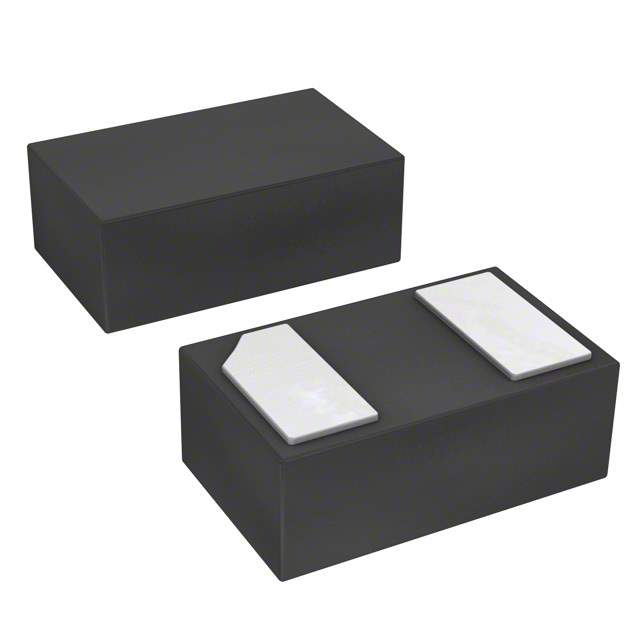

AOZ8811DT-03 Real Image
Same model may have multiple batches, images only for reference.

AOZ8811DT-03

Part No AOZ8811DT-03
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.6VWM 7VC 2DFN
Datasheet
AOZ8811DT-03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 25 Weeks
Features 7V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN (1x0.6)
Manufacturer Alpha & Omega Semiconductor Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 2-UDFN
Case / Package 2-DFN (1x0.6)
Family Name AOZ8811
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 861263-AOZ8811DT-03
Ultra Librarian 3D Model Ultra Librarian AOZ8811DT-03 CAD Model

Description

The AOZ8811DT-03 is a surface mount TVS diode manufactured by Alpha & Omega Semiconductor Inc. The operating temperature range of the product is -40°C to 125°C (TJ) and it features a 7V clamp 6A (8/20μs) Ipp.

  • Mounting: Surface Mount
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Features: 7V clamp 6A (8/20μs) Ipp
  • Package: 2-UDFN
  • Mounted On: Reel
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity per Package: 10,000
  • MSL Level: 1 (unlimited)
  • Estimated Production Lead Time: 25 weeks
  • REACH Status: REACH unaffected
  • Application: Circuit Protection
