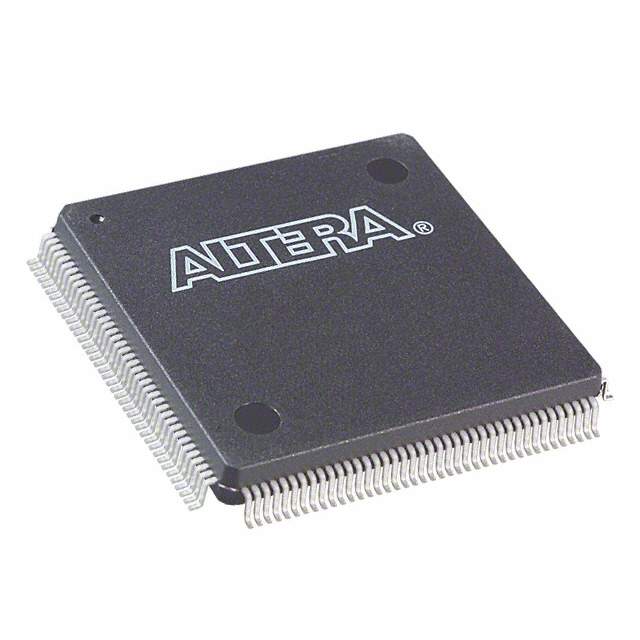

EPF8636AQC160-3N Real Image
Same model may have multiple batches, images only for reference.

EPF8636AQC160-3N

Part No EPF8636AQC160-3N
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 118 I/O 160QFP / FPGA FLEX 8000 Family 6K Gates 504 Cells 125MHz 0.42um Technology 5V 160-Pin PQFP
Datasheet
EPF8636AQC160-3N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series FLEX 8000
Part Status Obsolete(EOL)
Number of LABs/CLBs 63
Number of Logic Elements/Cells 504
Number of I/O 118
Number of Gates 6000
Operating Supply Voltage 4.75 V ~ 5.25 V
Mounting SMD
Operating Temperature Range 0°C ~ 70°C (TA)
Package 160-BQFP
Manufacturer Package 160-PQFP (28x28)
Win Source Part Number 774103-EPF8636AQC160-3N
Popularity Medium
Supply and Demand Status Limited
Family Name EPF8636A
Introduction Date January 01, 2003
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPF8636AQC160-3N CAD Model

Description

The Altera FLEX 8000 series EPF8636AQC160-3N integrated circuit (IC) is a complex programmable logic device (CPLD) with the following specifications:

  • I/O: 118
  • LABs/CLBs: 63
  • Logic Elements/Cells: 504
  • Gates: 6000
  • Supply Voltage: 4.75 V to 5.25 V
  • Operating Temperature Range: 0°C to 70°C
  • Package: 160-BQFP
  • Mounting: Surface-mount device (SMD)
  • Family: EPF8636A
  • Part Status: Obsolete (EOL)
