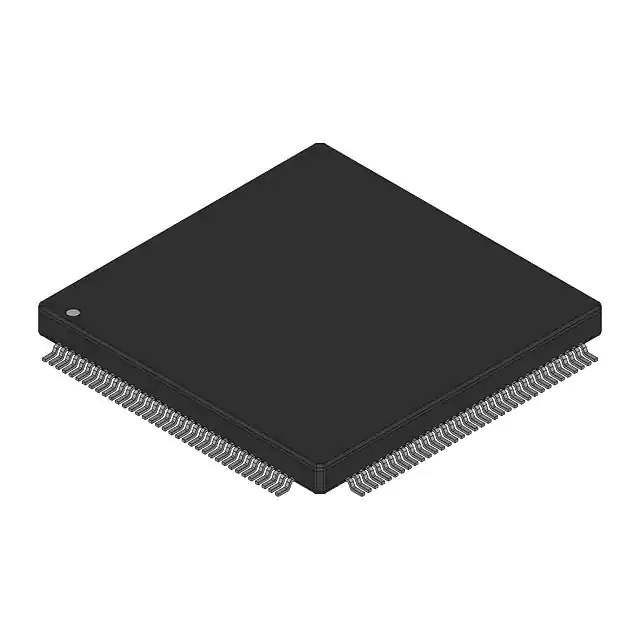

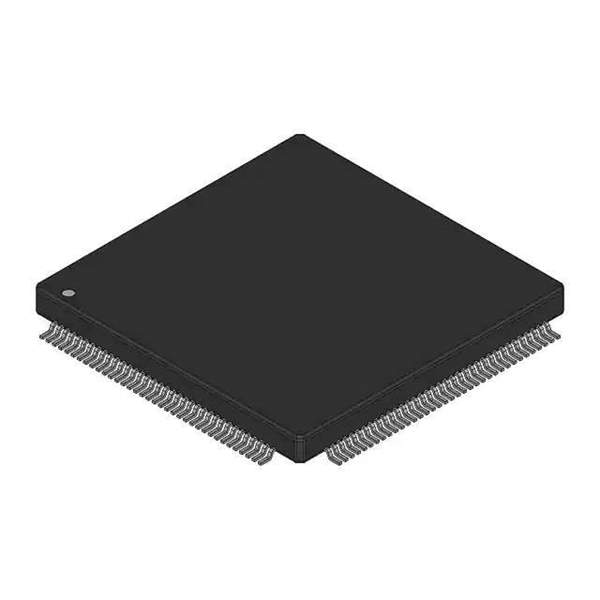

EPX780QC132-15Z Real Image
Same model may have multiple batches, images only for reference.

EPX780QC132-15Z

Part No EPX780QC132-15Z
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 80MC 15NS 132QFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Altera
Package Bulk
Product Status Active
Programmable Not Verified
Programmable Type EPLD
Delay Time tpd(1) Max 15 ns
Voltage Supply - Internal 4.75V ~ 5.25V
Number of Logic Elements/Blocks 16
Number of Macrocells 80
Number of Gates 1600
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 132-QFP
Supplier Device Package 132-PQFP
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 870676-EPX780QC132-15Z
Ultra Librarian 3D Model Ultra Librarian EPX780QC132-15Z CAD Model

Description

The Altera EPX780QC132-15Z is an Embedded CPLD designed for applications that require programmable logic devices with low gate counts.

  • Package: bulk
  • Standard Package Quantity: 1
  • Programmable Type: EPLD (Erasable Programmable Logic Device)
  • Gates: 1600
  • Delay Time: 15 ns
  • Voltage Supply: 4.75V to 5.25V
  • Logic Elements/Blocks: 16
  • Macrocells: 80
  • Application: surface mountable
  • Package: 132-QFP
  • Product Status: active
  • Manufacturer: Altera
